SHOPHOUSE BARNDO BM2635

Gross Living Area Sq Ft: 2635

Total Area Sq Ft (porches, garage, etc.): 4597

Slab Size: 33′ x 40′ house, 35′ x 40′ garage, plus 8′ porch

Foundation Type: slab

Optional foundations: (crawl & basement require modification)

Bedrooms: 3

Full bathrooms: 3

Bathroom Including Double Vanity

Walk-In Closet in Master

Pantry: 4′ x 8′

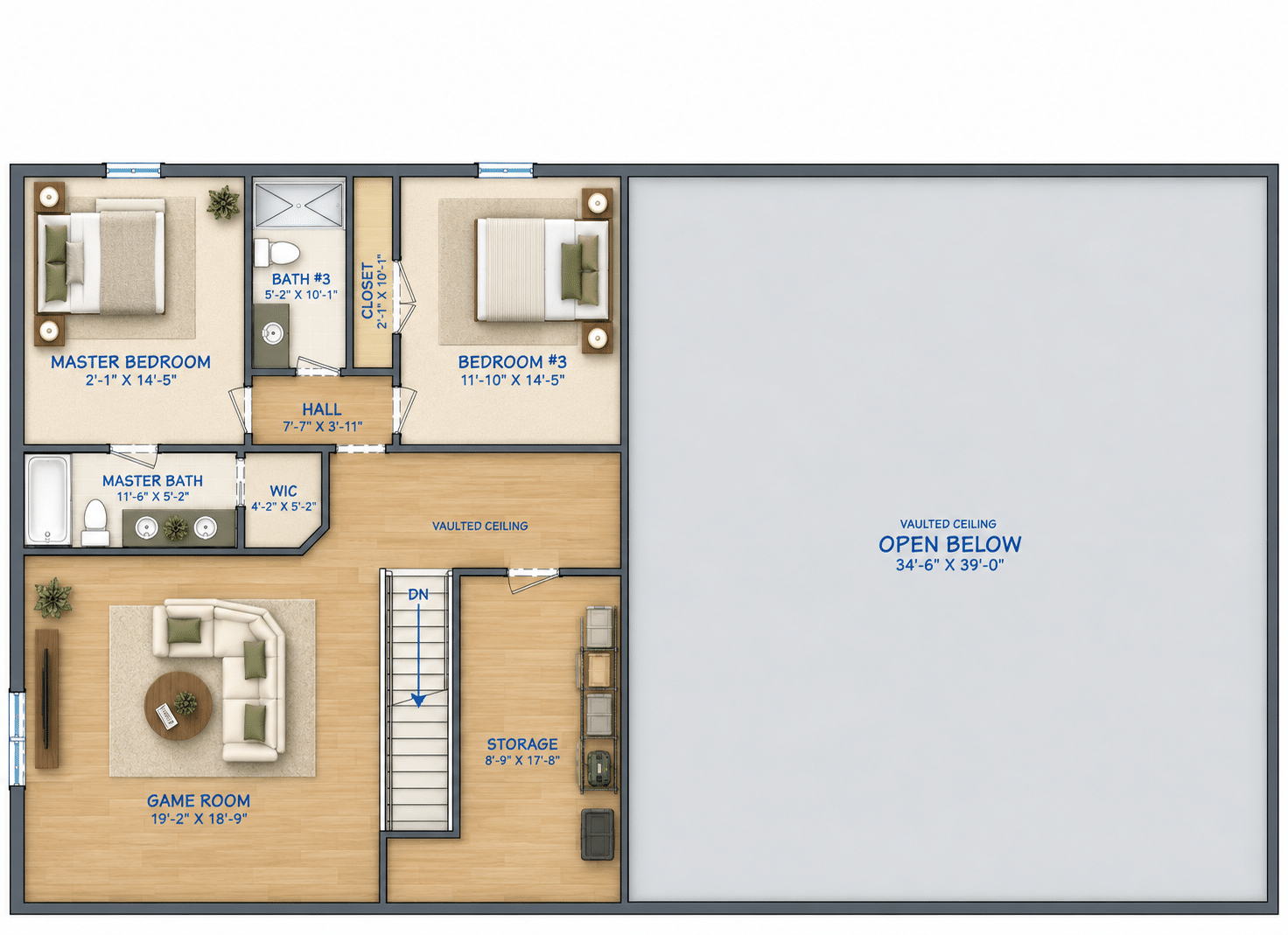

Large game room on 2nd floor

(8 ft. ceilings on 1st floor, 8 ft. and sloped ceilings on 2nd floor)

FRAMING SPECIFICATIONS
Exterior framing: 2×6 wood
Roof framing: Truss
Siding: Metal
Roofing: Metal

All plans are designed as conventional wood or conventional steel stud framing (2×6 exterior, 2×4 interior) using a monolithic slab foundation. Post frame foundation and post framing details will require a modification fee. Our plans are not designed in red iron steel. If you plan to use a red iron steel company, you can purchase our licensed plan and the red iron company will use our plan with their software to produce the red iron shell package. CAD files are available for an extra fee if a steel manufacturer, post frame company or local engineer requires them.

-Digital download (PDF can be printed 24″X36″ full size)

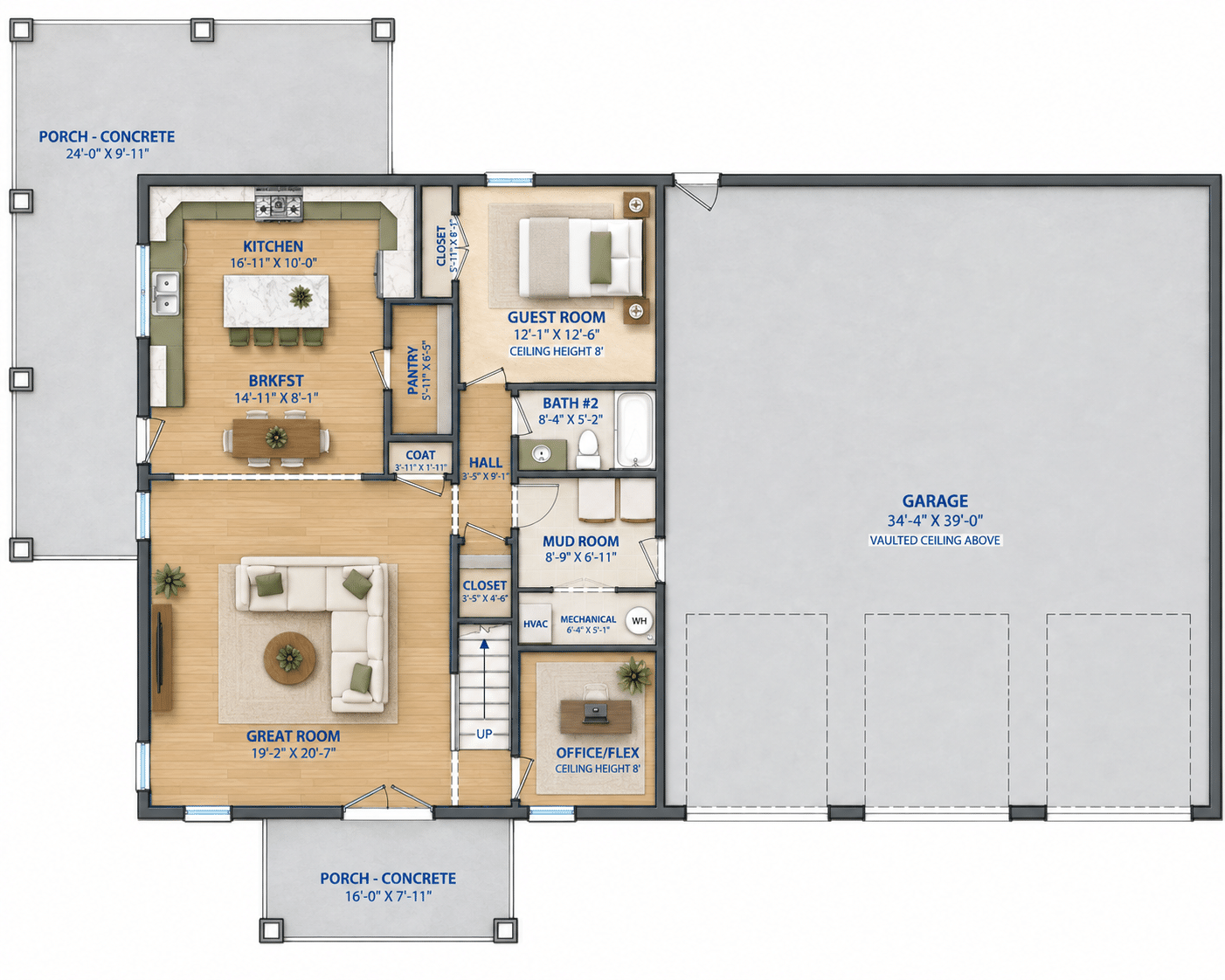

-First Floor Plan
-Second Floor Plan
-Roof Plan
-Front and Rear Elevation

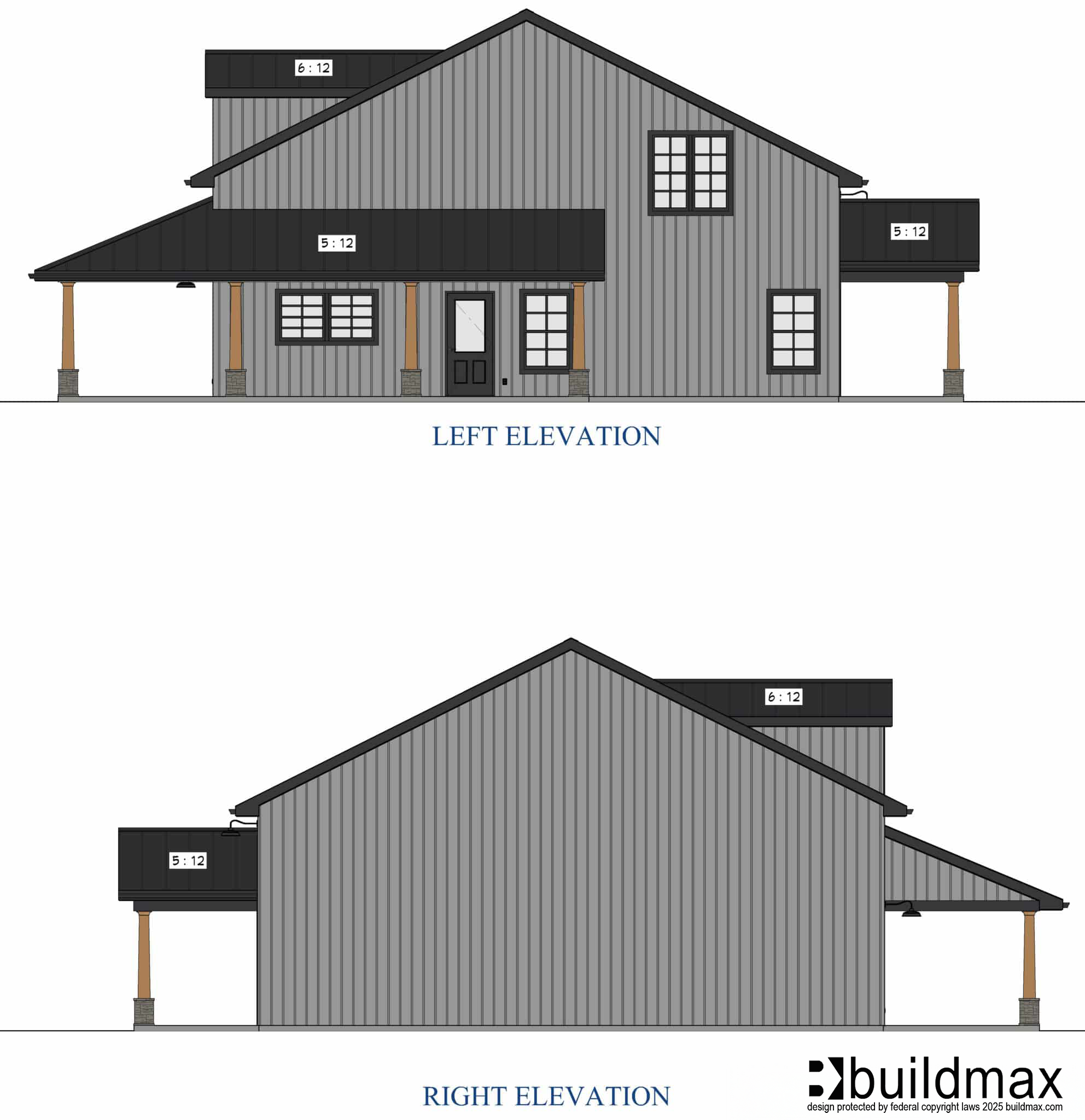

-Right and Left Elevation
-First & Second Floor Electrical Plan
-First & Second Floor Plumbing Plan
-Foundation Plan
-Roof Framing Plan
-Second Floor I-Joist Plan
-Doors & Windows Schedule
