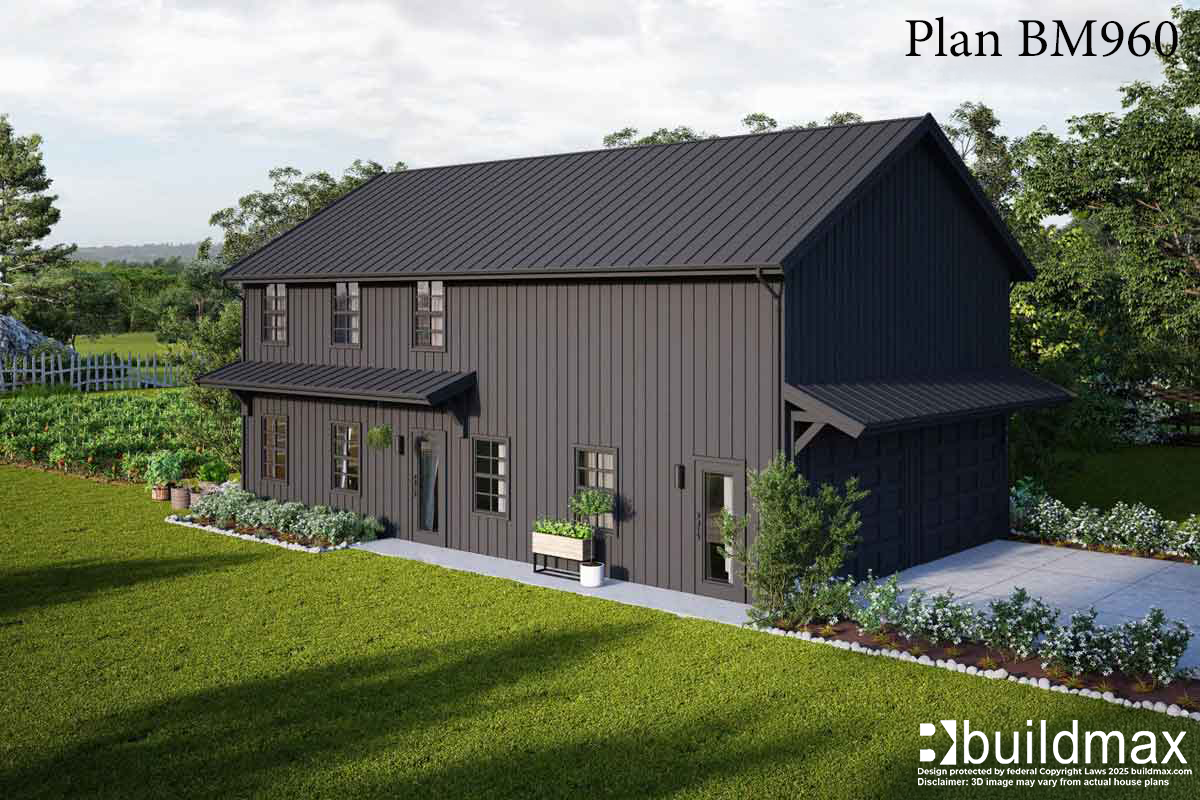

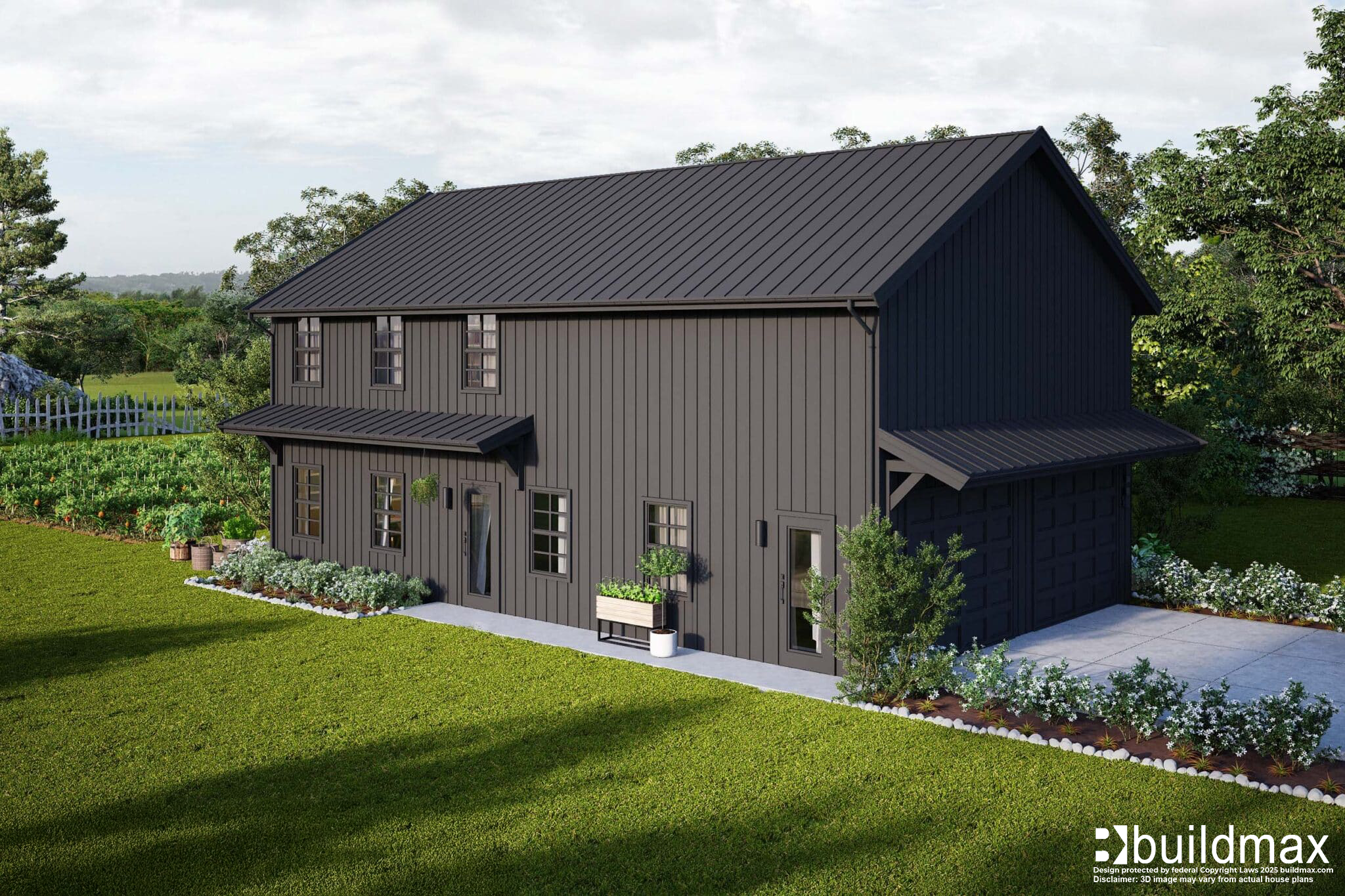

BACHELOR BARNDO - BM960

small black barndominium

1 BEDROOM, 1.5 BATH, 923 SQ FT BARNDOMINIUM : Post Frame

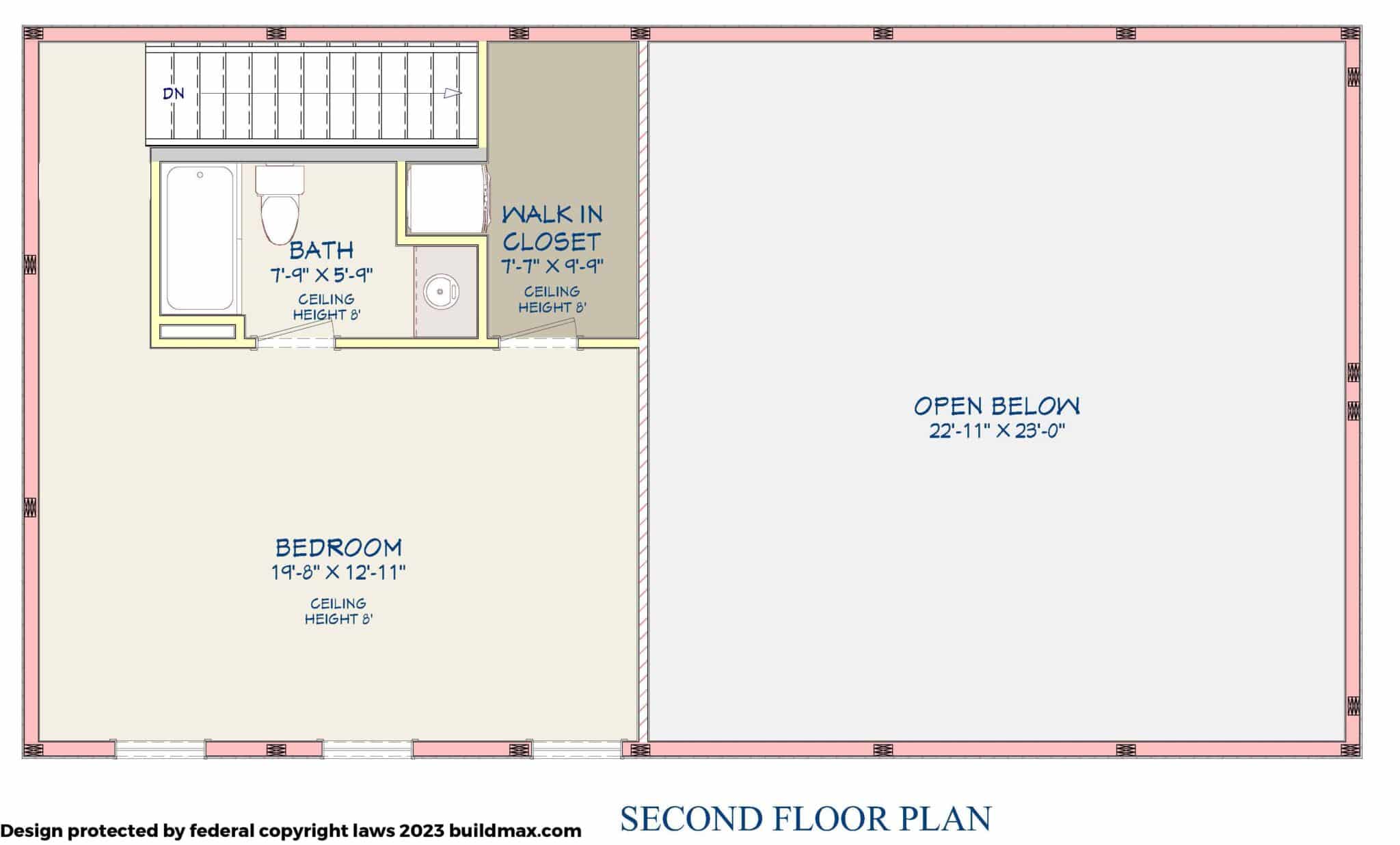

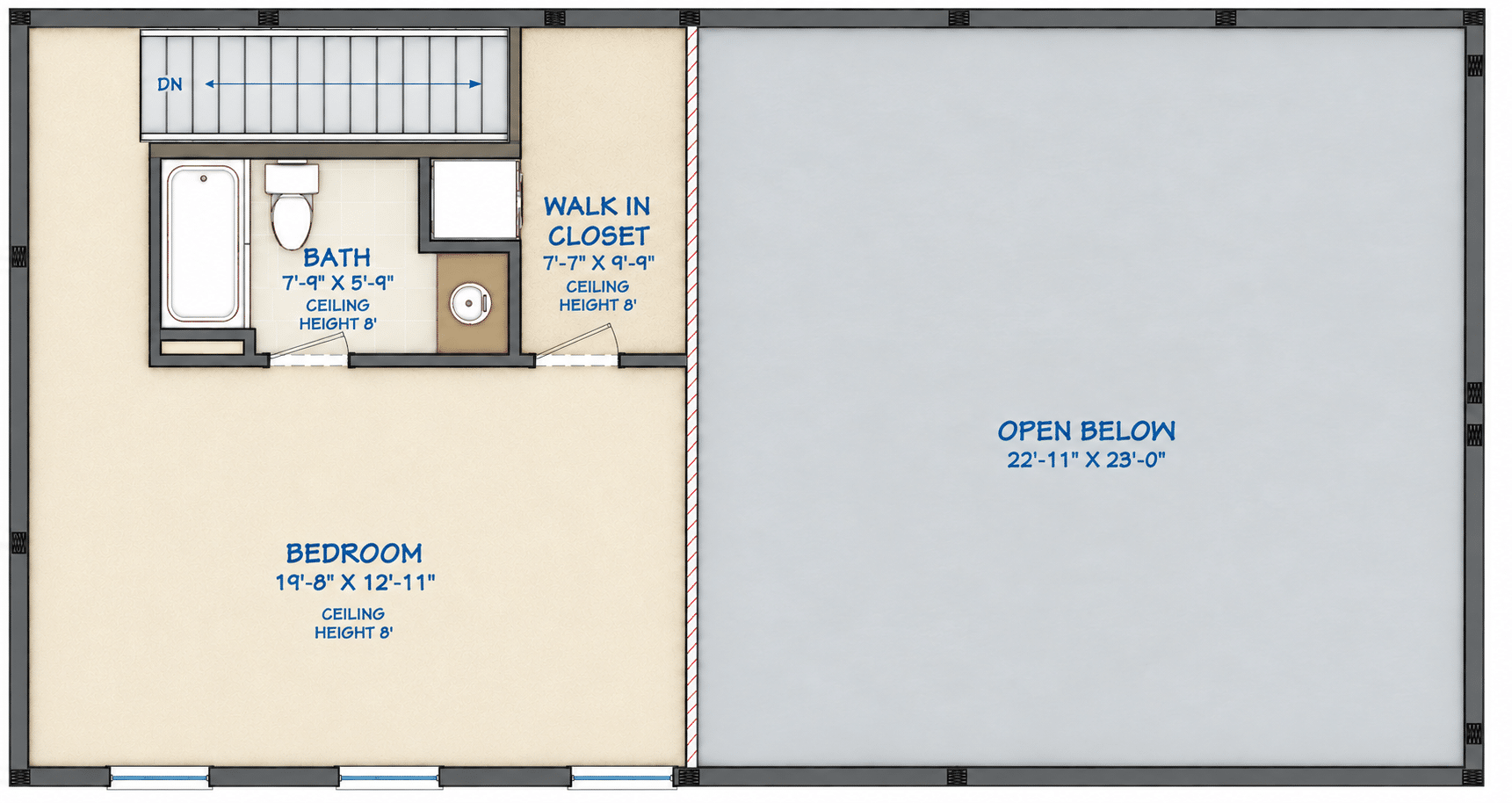

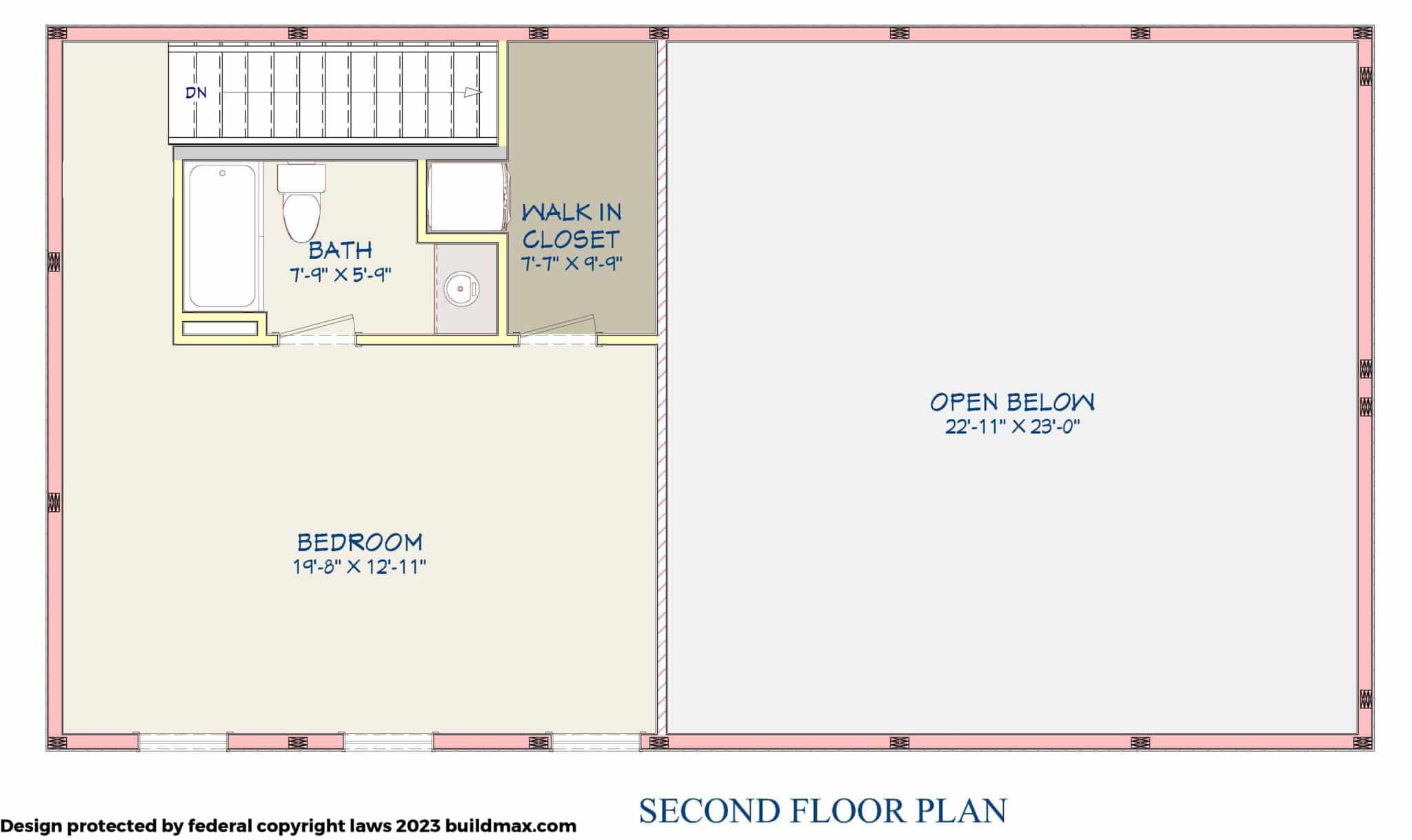

Looking for the perfect bachelor pad? This post frame barndominium plan is perfect for those who don’t need all those extra bedrooms in other plans. This plan has a spacious bedroom and walk-in closet upstairs, with the kitchen and living room downstairs. A spacious 2-car garage has plenty of space for to be a shophouse. This is the perfect plan for those seeking a guest house as well. This barndominium can be built using a metal building kit, post frame kit, or a conventional wood frame kit giving you a total pricing advantage no matter what market you are in.

Note: this plan is designed as a post frame (pole barn) but it can be modified for convention stick or steel. You can also redesign this plan with 3 bedrooms or more.

Pricing: Stock PDF Plan for Post Frame $1,345.00

Modify this plan for $750 more

Custom design based on this plan: call for quote

KEY SPECS

GLA Sq Ft

923

1

Bed

1 1/2

Baths

2

Floor

2 Car

Garage

PLAN DESCRIPTION

Make changes to this plan or redesign it in as little as 21 days!

Our new Accelerated Custom Design program can get a first draft in your hands in as little as 21 days.ย

FAQ

Gross Living Area Sq Ft: 923

Total Area Sq Ft (porches, garage, etc.): 1486

Slab Size: 44’W X 24’L

Foundation Type: slab

Bedrooms: 1

Full bathrooms: 1ย

Walk-In Closet

(8 ft. ceilings )ย

FRAMING SPECIFICATIONS
Exterior framing: 2×6 woodย
Roof framing: Truss
Siding: Metal
Roofing: Metal

This plan is designed as a post frame (pole barn) but can be modified for conventional stick for an additional modification fee. Our plans are not designed in steel as most steel companies have their own software for the steel shell package and since every steel company has different column specifications. CAD files are available for an extra fee if a steel manufacturer, post frame company or local engineer requires them.

-Digital download (PDF can be printed 24โ€ณX36โ€ณ full size)

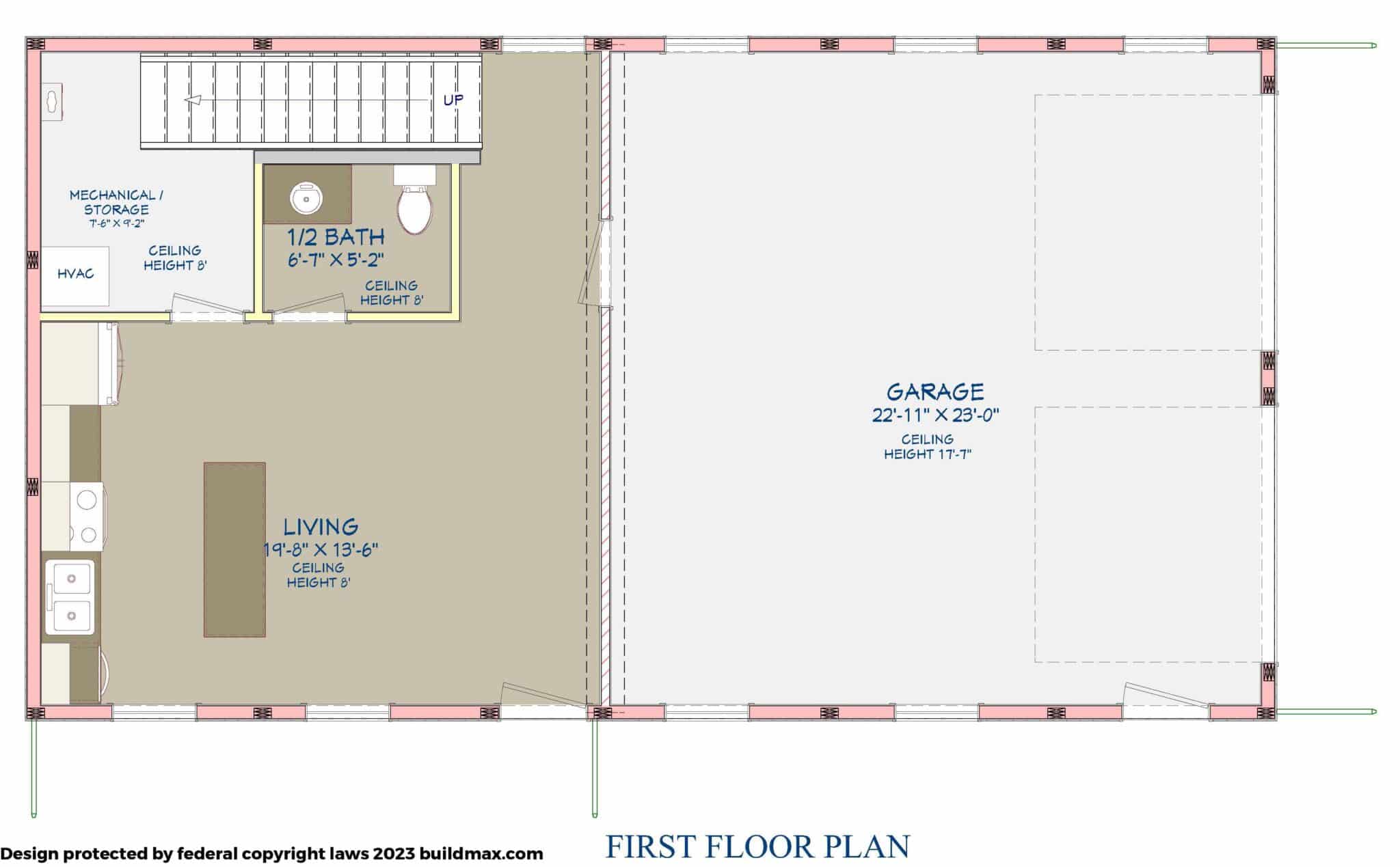

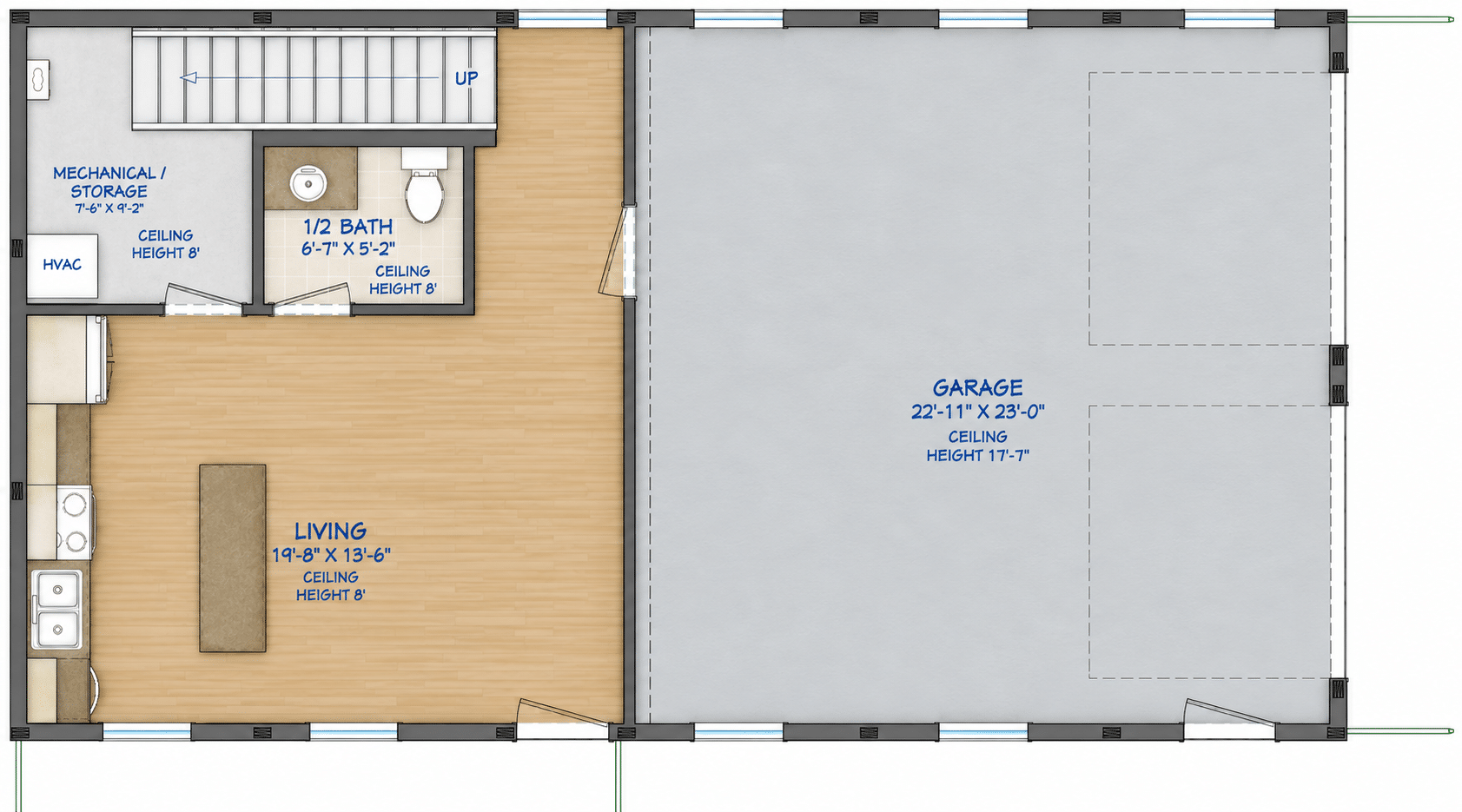

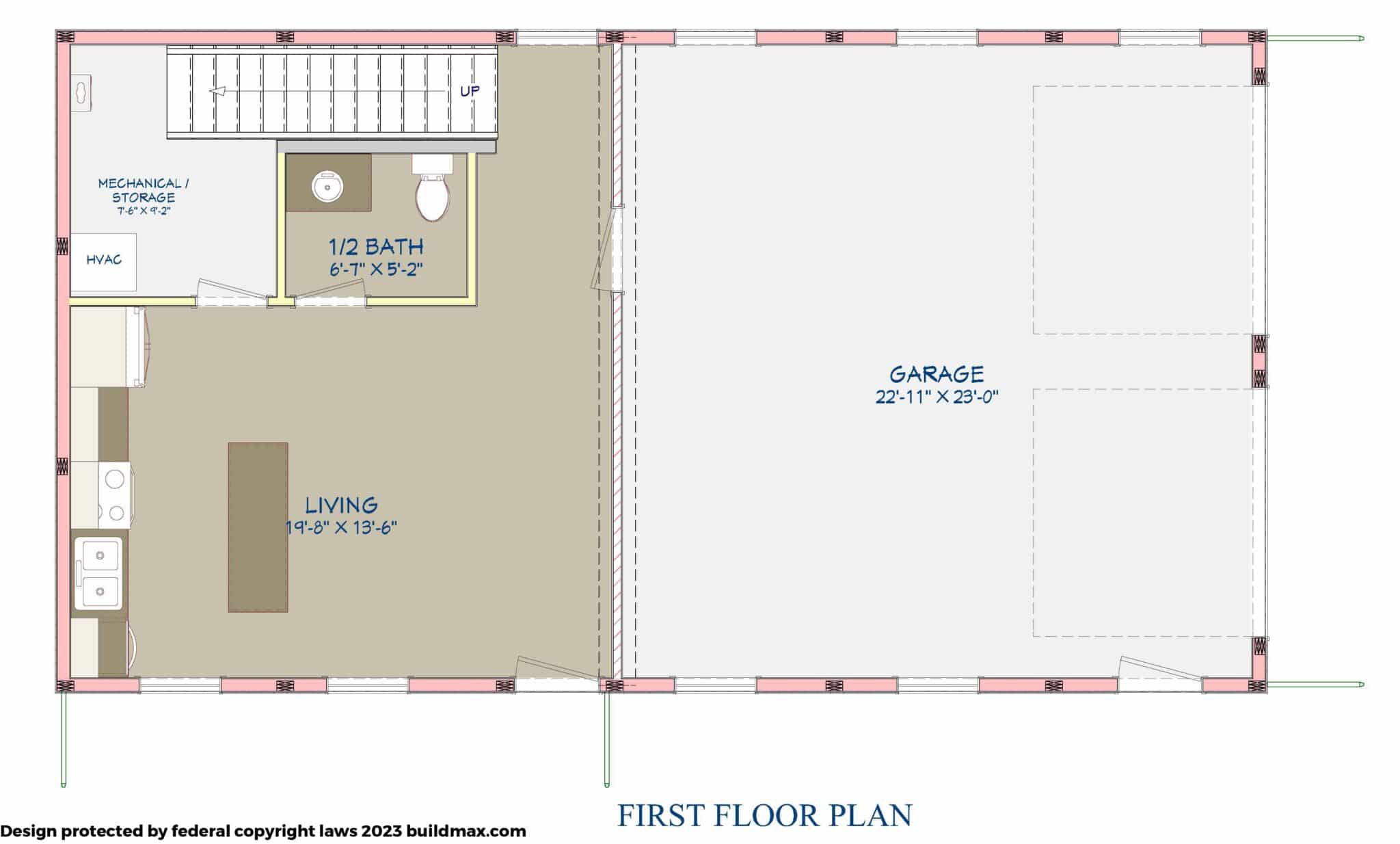

-First Floor Plan
-Roof Plan
-Front and Rear Elevation
-Right and Left Elevation
-First Floor Electrical Plan
-First Floor Plumbing Plan
-Foundation Plan
-Roof Framing Plan
-Doors & Windows Schedule

All house plans on buildmax.com were designed to accommodate the local codes and requirements at the time & location the original house was designed, these may not fall directly in line with your local regulations, and it is your responsibility to follow up with your local building department to ensure compliance is accomplished. Photo and video renditions may differ from the actual plans based on many factors, including truss layout, exterior and interior finishes. All stock, custom or modified plan purchases are final, and we cannot refund or exchange any plan after date of purchase.

In addition to the house plans you order; many jurisdictions require a site plan be drawn up that indicates where on the property the structure will be placed. Some areas of the country require specific beam size for roof loads depending upon snowfall in the region. If your lot is not tied to a sanitary sewer system you may also need a septic design to be drawn by a licensed professional. Many areas now have area-specific energy codes that also must be followed to certain specifications. There are several free energy code calculators online that your local building department may accept. Your builder may also be able to help with this.

In some regions, there are additional steps you will need to take to insure your house plans follow local codes. Some areas of North America have extremely strict structural engineering requirements. Examples of this would be things like areas of California and the Pacific Coast that are on active fault lines and more prone to natural disasters, areas at risk for tropical storms and hurricanes such as the East coast, the Gulf coast & the Carolinas. Tornado Alley in the Midwest will most certainly have interesting structural engineering requirements set in place. Also New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, count on having to hire a state licensed structural engineer to look over and approve the designs and potentially provide additional drawings and recalculations required by your building department. Pretty much every region of the United States has some type of specific requirement due to natural elements, you may need to leave room in your budget for the purchase CAD drawings so an engineer or architect can make the appropriate changes needed. Building departments typically have a print-out they will provide you listing all the items they require to obtain a building permit.

Something else to be aware of with stock plans, they do not have a professional stamp attached. If your building department requires one, this means they will only accept a stamp from a professional that is licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for a full review and a stamp showing the plans have been approved by a state licensed architect or engineer. In addition to this, plans which are used to construct homes in the state of Nevada are required to be drawn by a licensed Nevada architect. If you are not fully aware of all the Local regulations just go down and check with your local building department, they will be able to provide you with every code requirement and specification you need for your plans to be 100% compliant with the local regulations in your area.
