A stunning black barndominium floor plan. The great room boast large floor to ceiling windows on the first floor and the master suite is a dream with his and her walk-in closets. The large professional kitchen has double islands and a dream pantry. The master bathroom has a unique “wet room shower” with a freestanding tub. The second story has an abundance of space for the kids. The jack-n-jill bathroom between bedroom 2 and 3 is perfect for younger children and the private bath in bedroom 4 can also be accessed by the living space or tv room.
Our new Accelerated Custom Design program can get a first draft in your hands in as little as 21 days.
Total Heated Square Footage: 3945
Slab Size: 40’W X 62’L 12′ porches
Foundation Type: slab
Optional foundations: (crawl & basement require modification)
Full bathrooms: 3.5
Bathroom Including Large Shower and Double Vanity
Spacious Reach-in Closet
Pantry: Large 16×8
Living Area Vaulted Ceilings: 28 ft.+ high
(10 ft. ceilings on the first floor and 8′ on the second floor)
Exterior framing: 2×6 wood
Roof framing: Truss
(All stock plans are configured as conventional stick-built plans. If you choose to build using steel framing, you can provide these stock plans to a steel company for column placement and your local building dept for permit approval. We can modify our plans for steel and post framing if you have the specifications from the supplier. Modifications for optional building methods would require a modification fee).
-Digital download (PDF can be printed 24″X36″ full size)

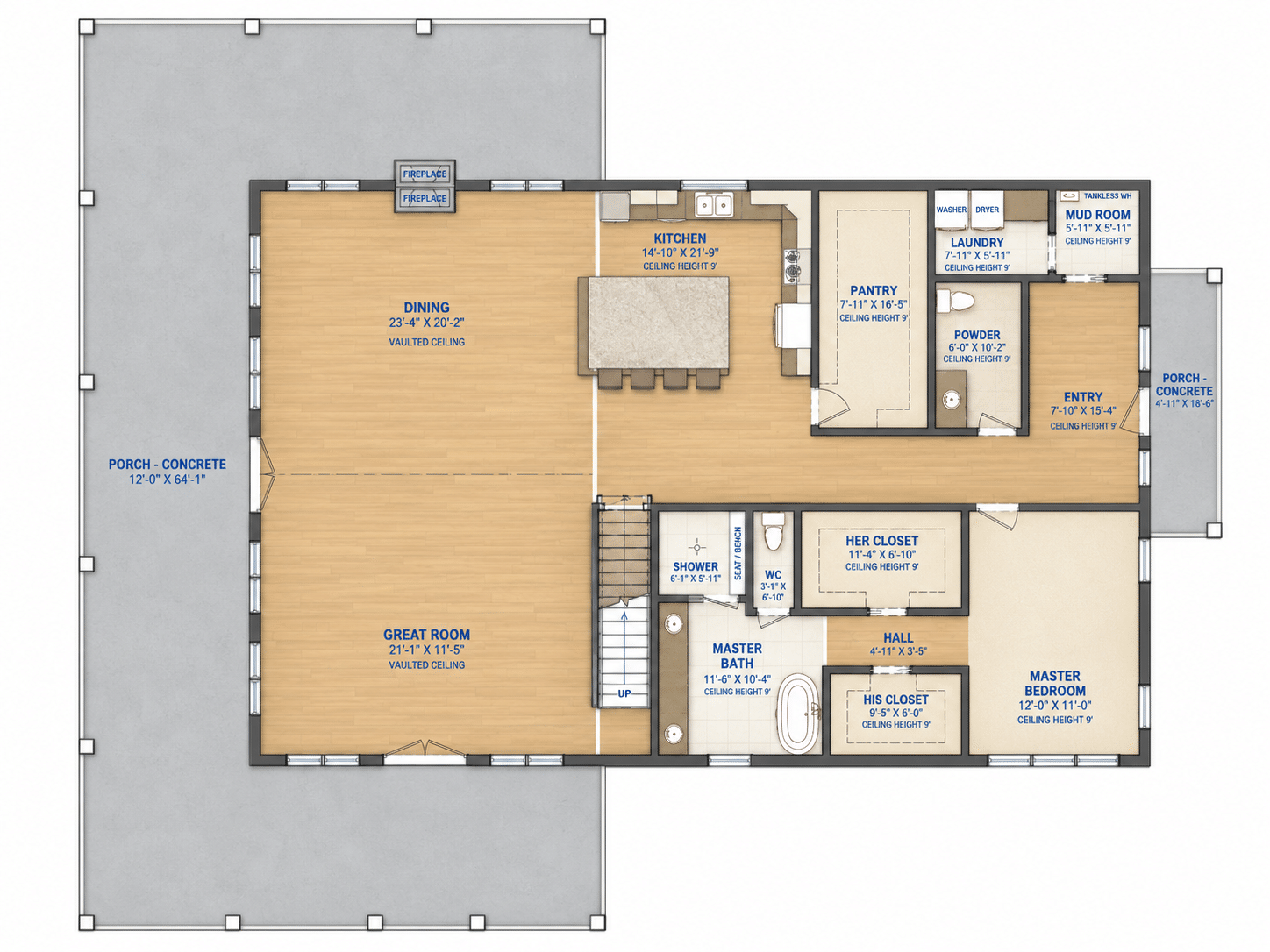

-First Floor Plan

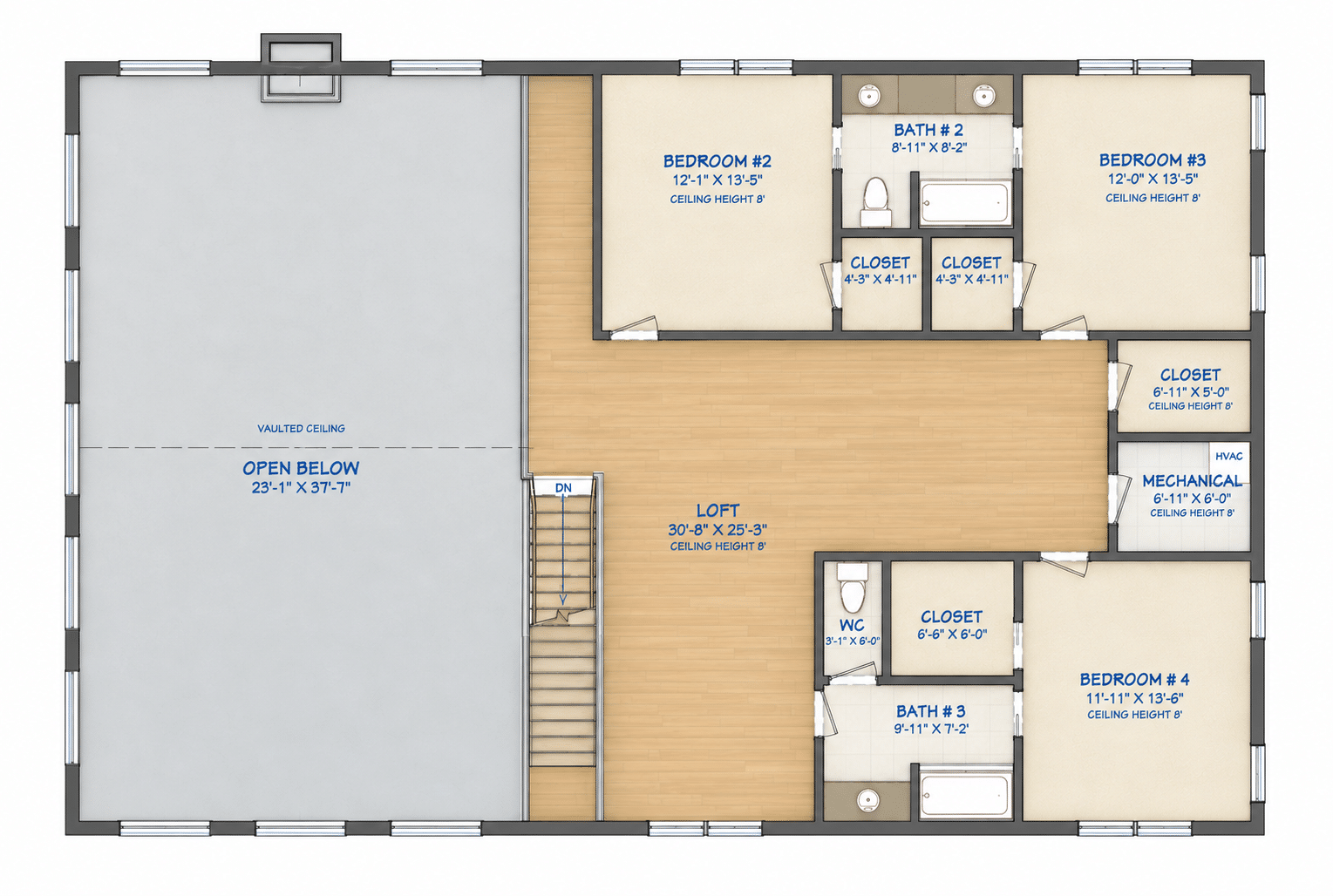

-Second Floor Plan

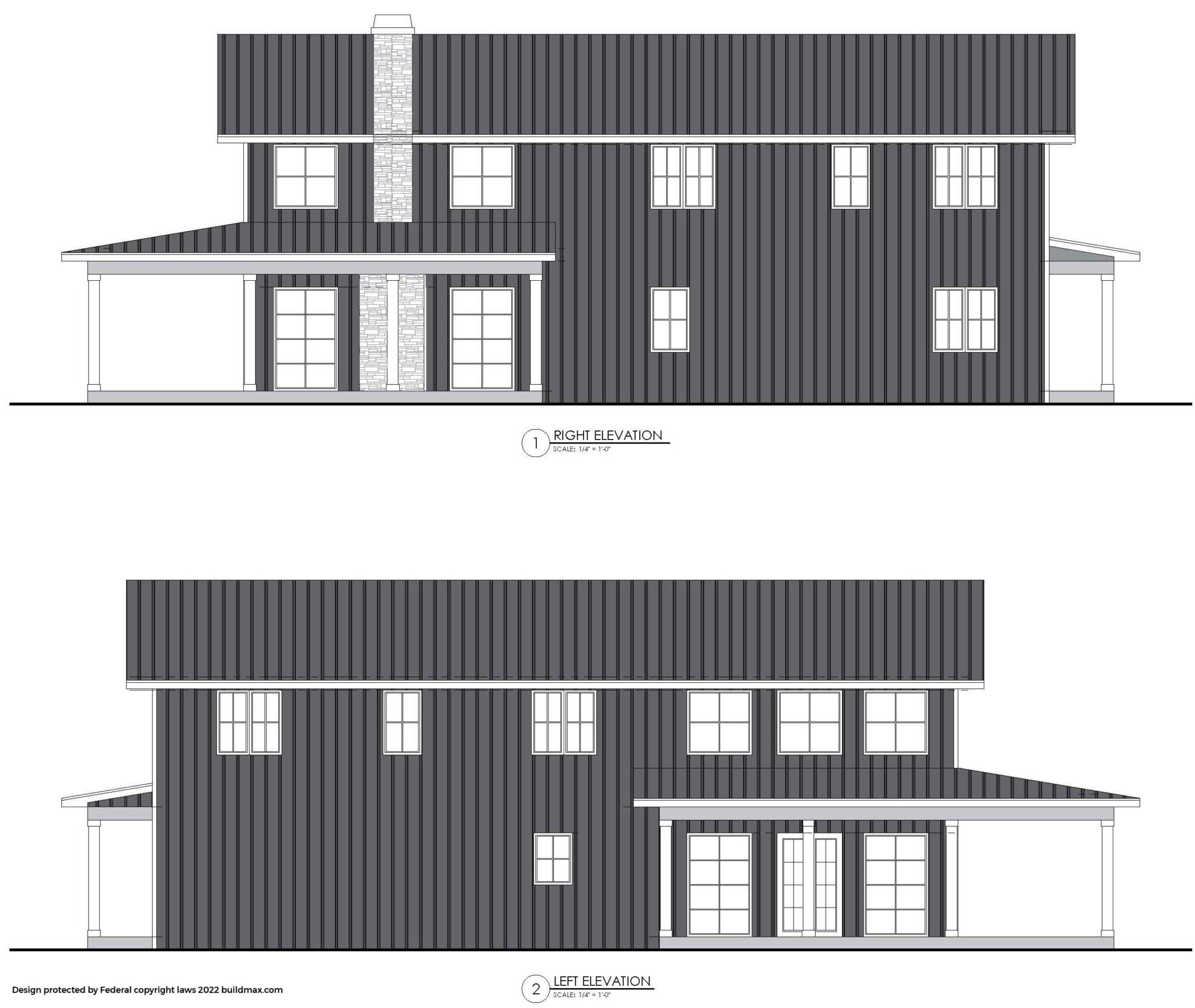

-Front and Rear Elevation
-Right and Left Elevation
-First & Second Floor Electrical Plan
-First & Second Floor Plumbing Plan
-Roof Framing Plan
-Second Floor I-Joist Plan
-Doors & Windows Schedule
