Barndo Plan #3945

A GORGEOUS 5 BEROOM BARNDOMINIUM

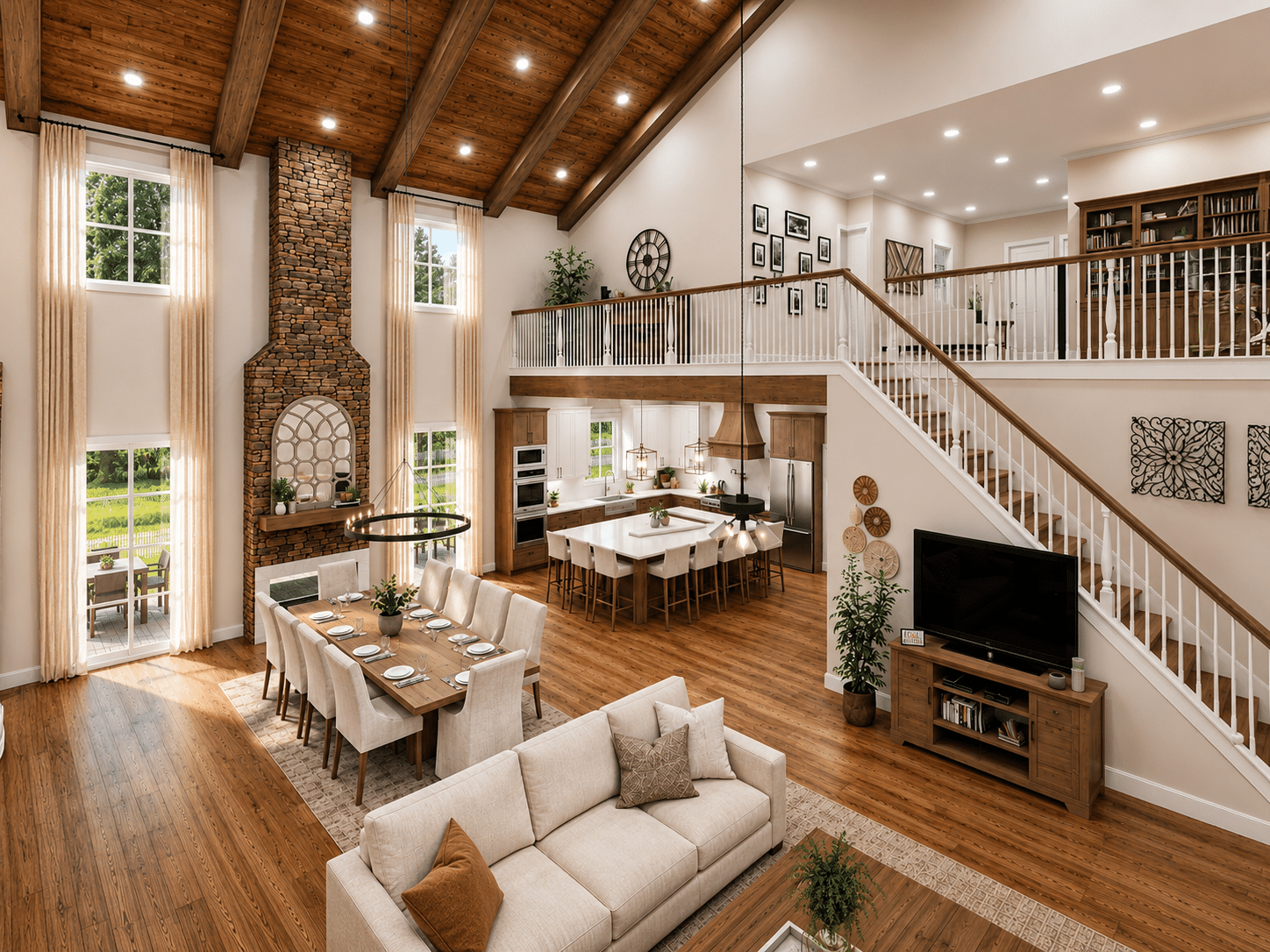

Who says barndominiums have to look like a barn. Not this beauty. This home can be stick built or manufactured as a steel barndo. The great room boast large floor to ceiling windows on the first floor and the master suite is a dream with his and her walk-in closets.

Special Price - Contact us for details on Barndo-3945

KEY SPECS

sq ft

3945

5

Bed

3 1/2

Baths

2

Floor

No

Garage

PLAN DESCRIPTION

Design this plan smaller 2,400 or larger

Our new Accelerated Custom Design program can get a first draft in your hands in as little as 10 days.

FAQ

Total Heated Square Footage: 3945

Slab Size: 40’W

Foundation Type: slab

Optional foundations: walk, crawl, basement

Beds & Baths-

Bedrooms: 5

Flex rooms: 0

Full bathrooms: 3

Master Suite Loft Square Footage:

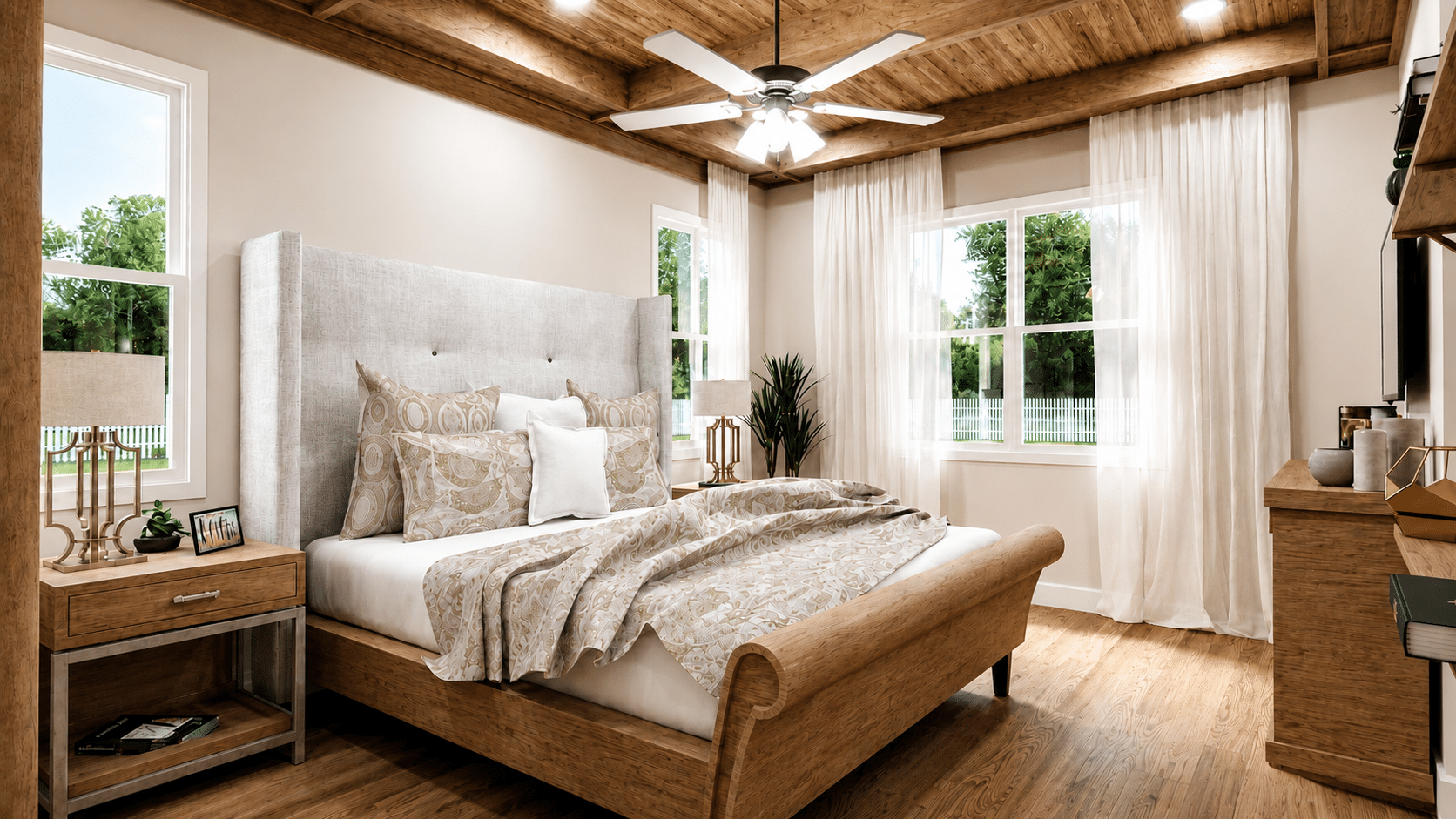

Master Suite Breakdown –

Bedroom:

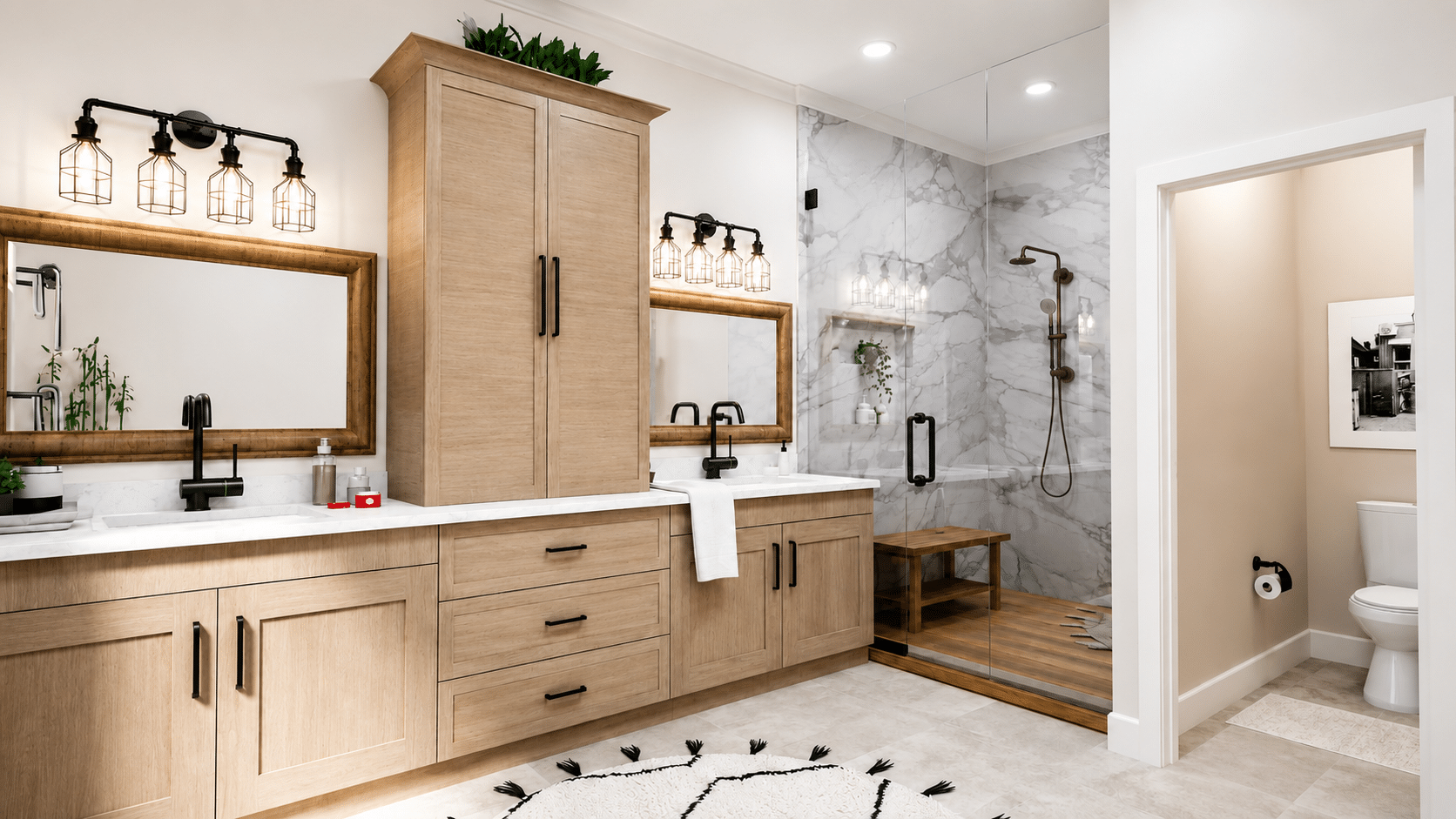

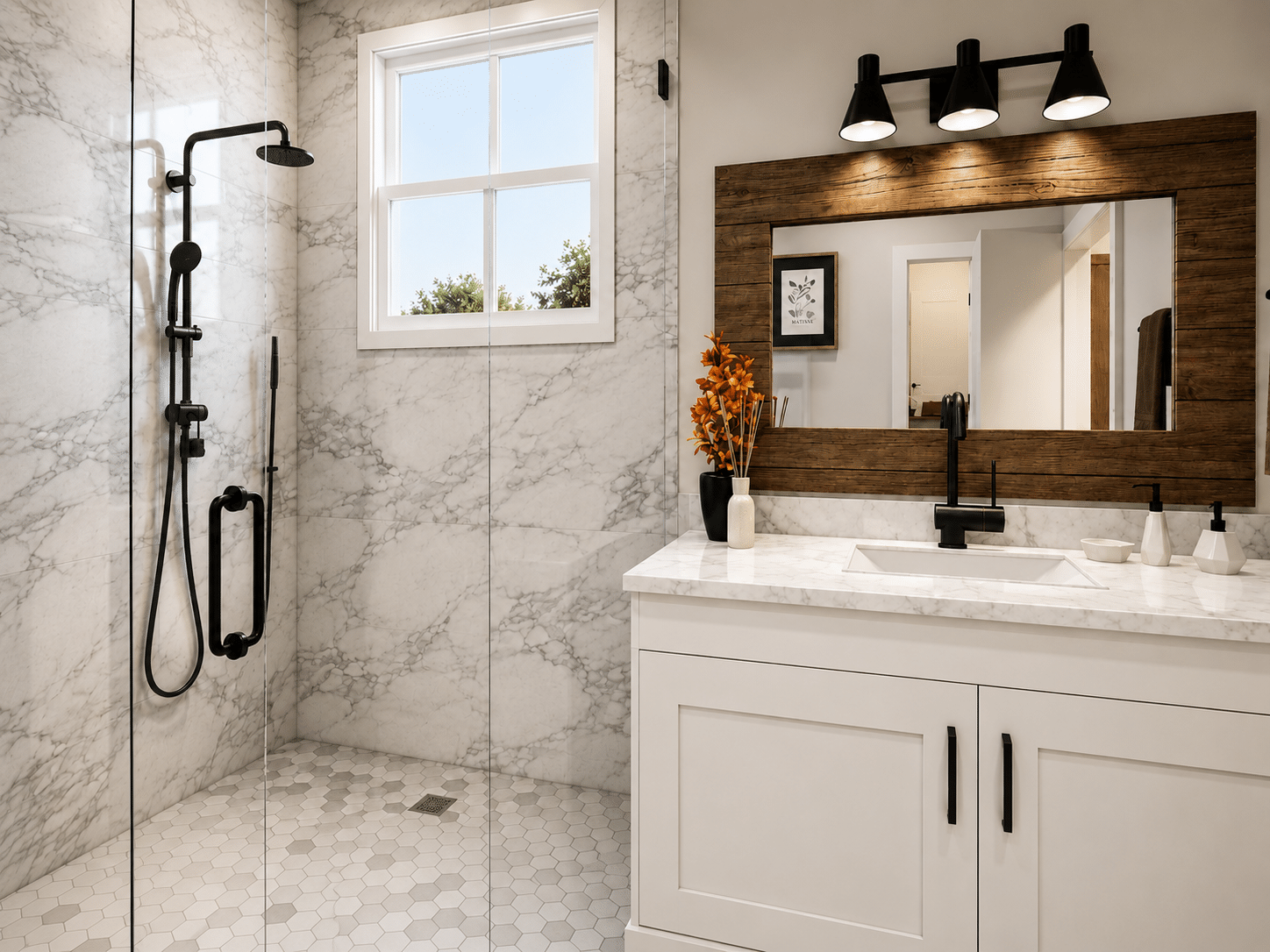

Bathroom Including Large Shower and Double Vanity

Walk-In Closet

Bedroom

Room:

Spacious Reach-in Closet

Flex Room-

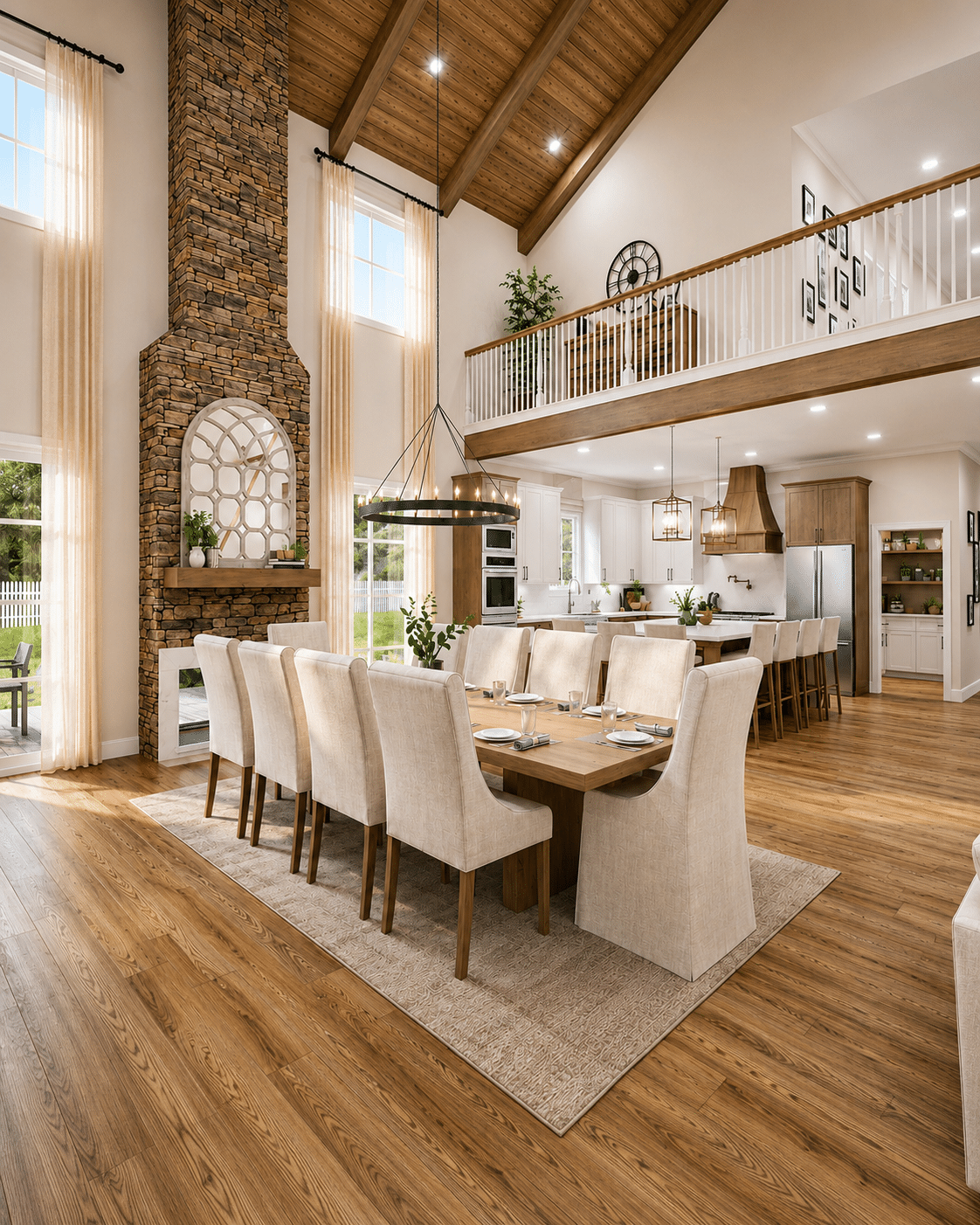

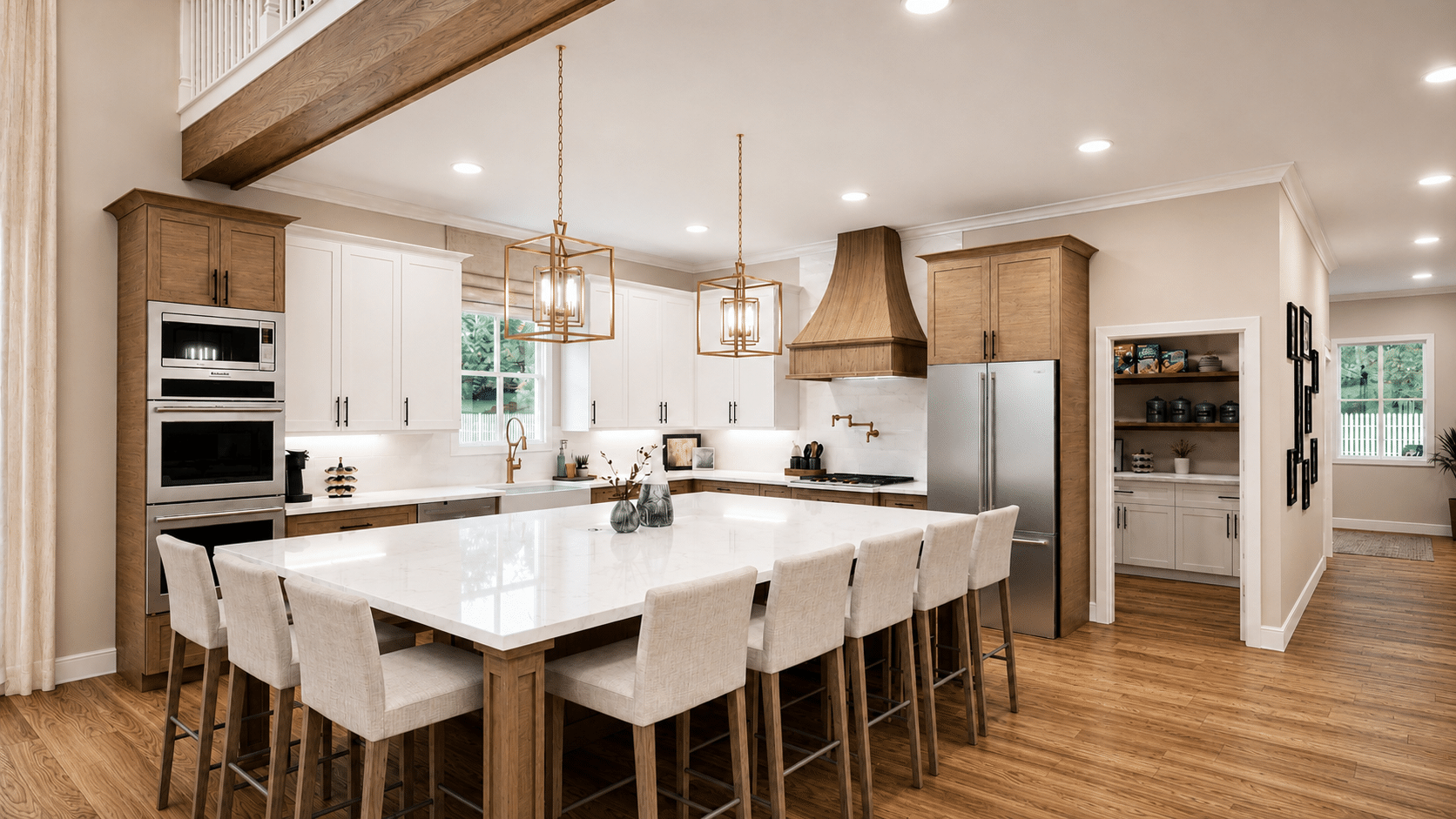

Living/Kitchen combined Square Footage:

Pantry: Large 16×8

Living Area Vaulted Ceilings: 24 ft.+ high

(10 ft. ceilings throughout the rest of the home)

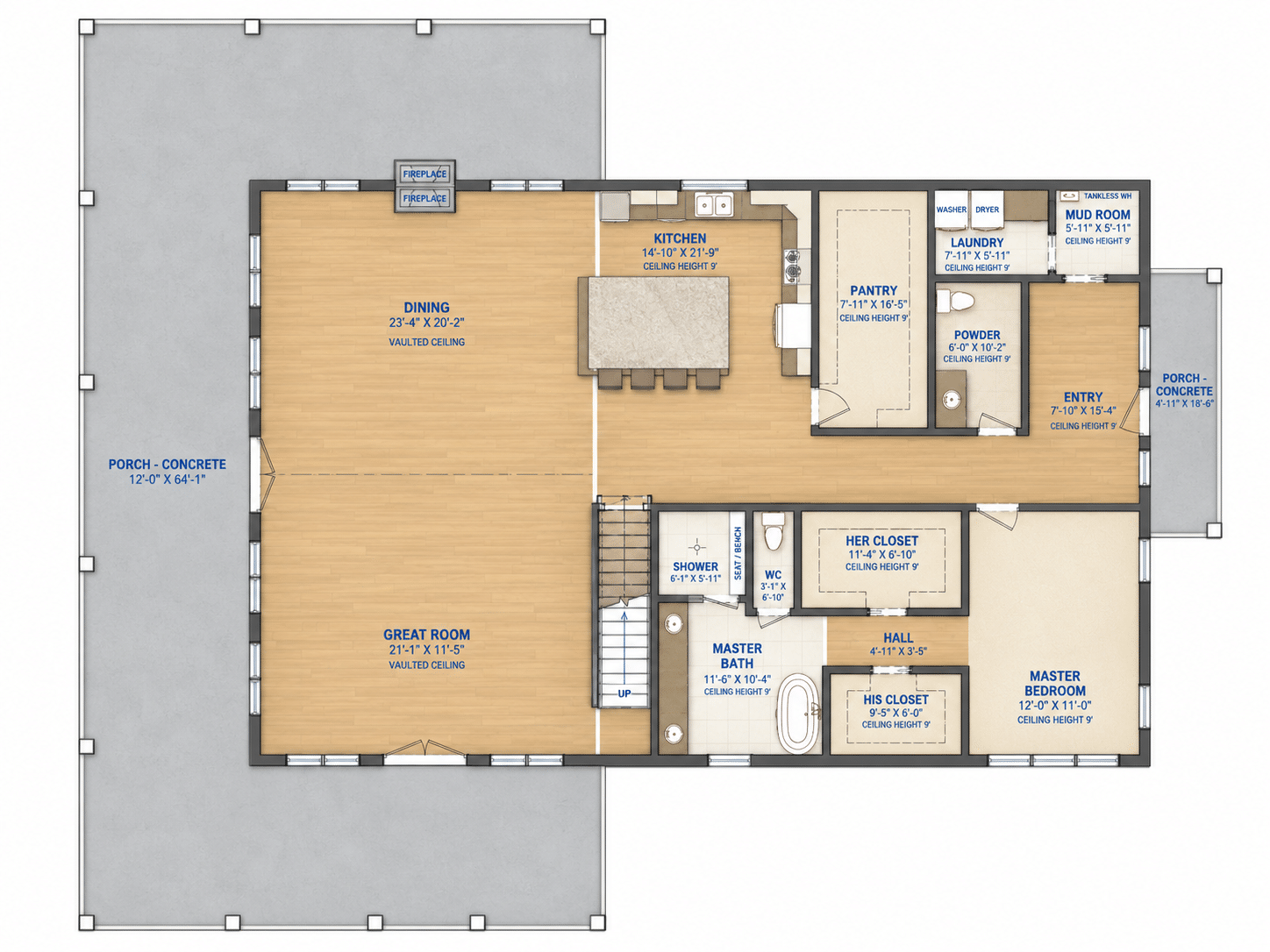

-First Floor Plan

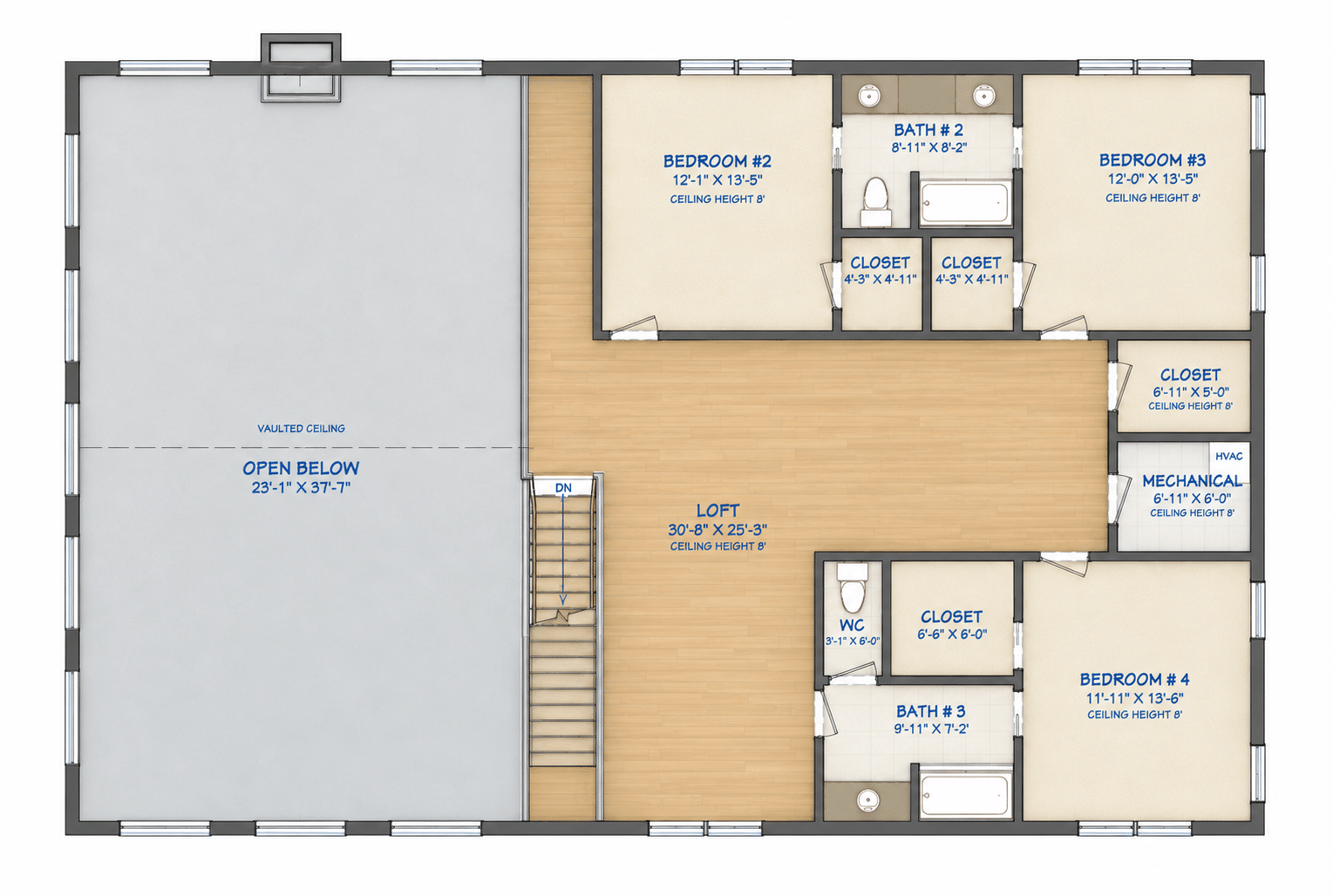

-Second Floor Plan
-Roof Plan

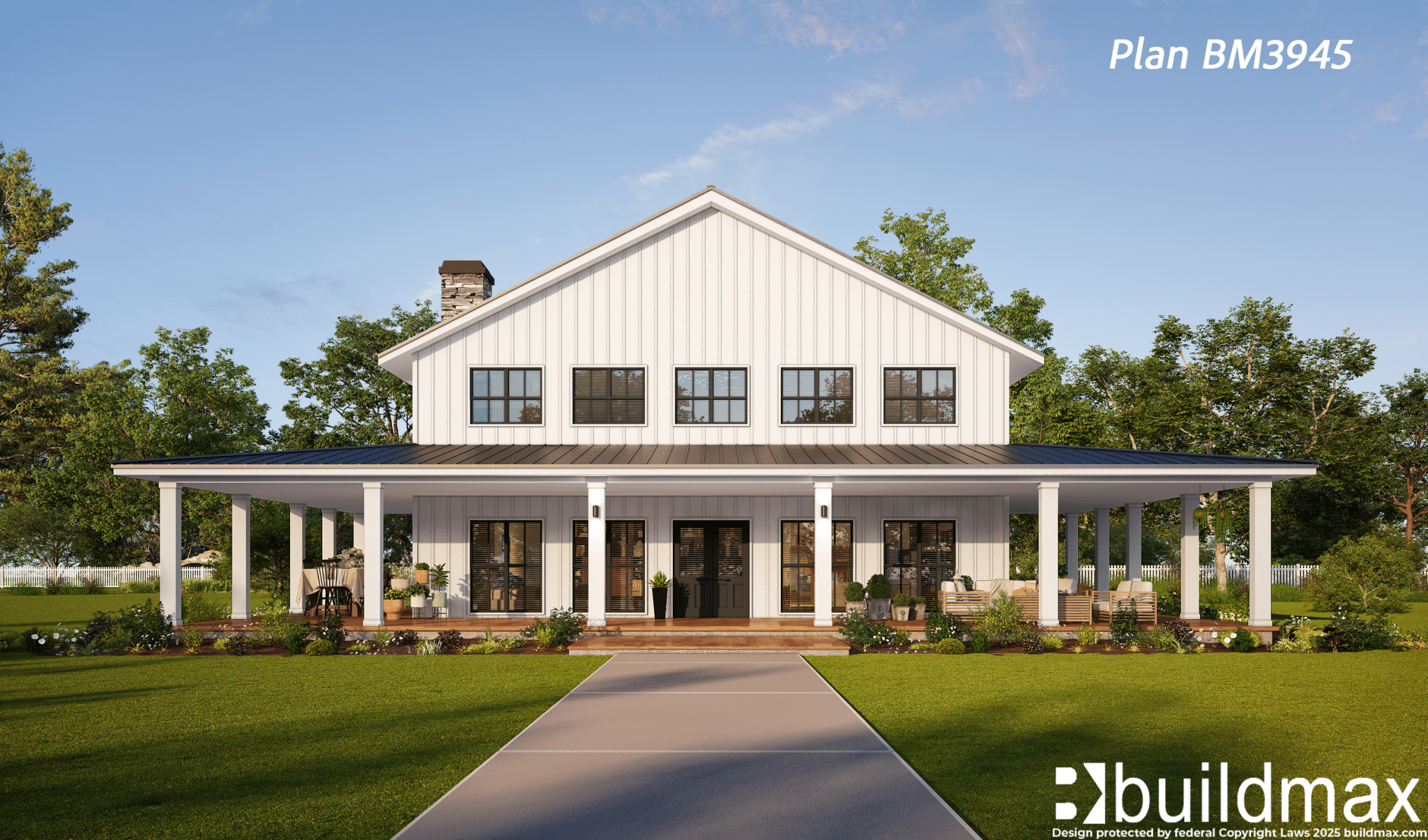

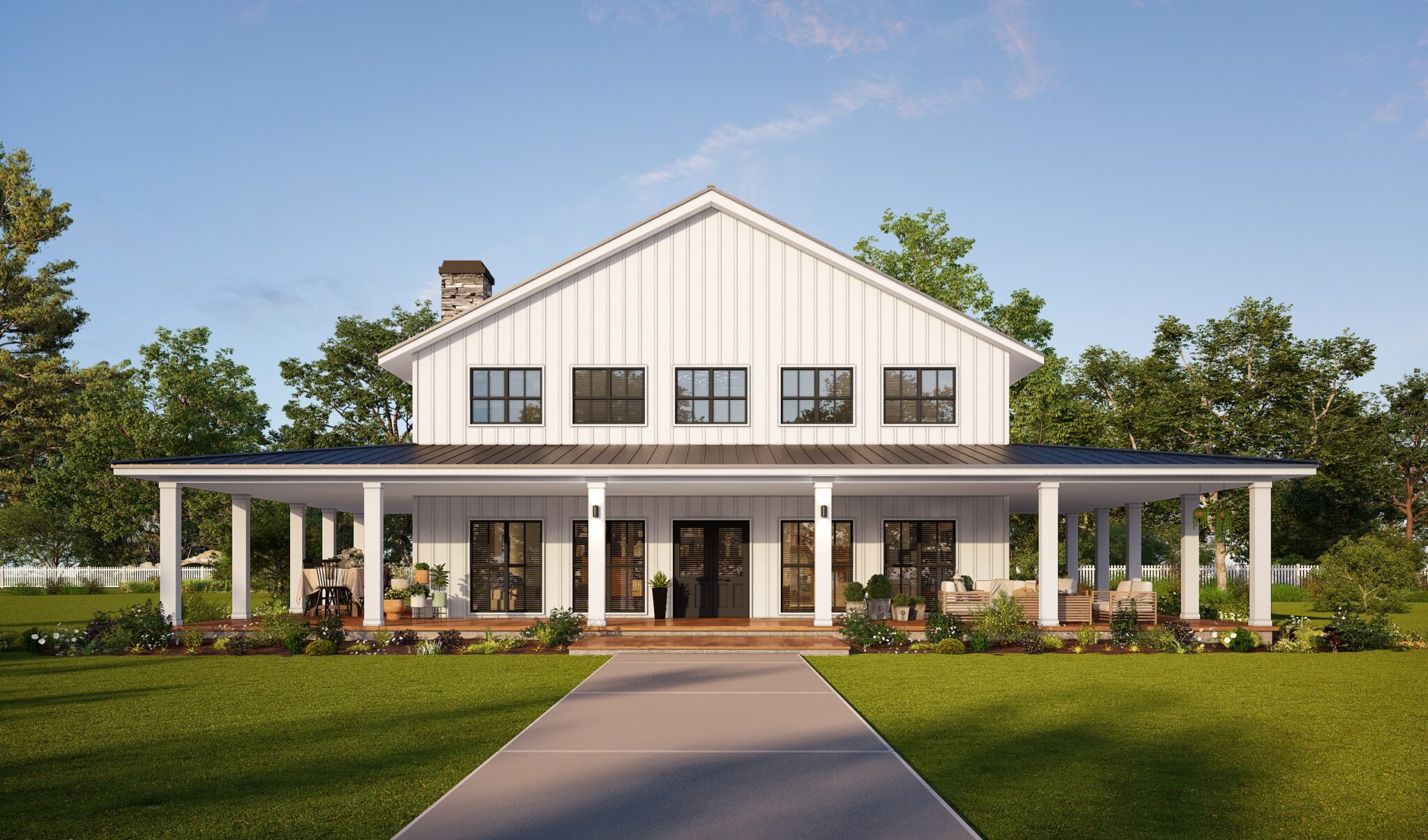

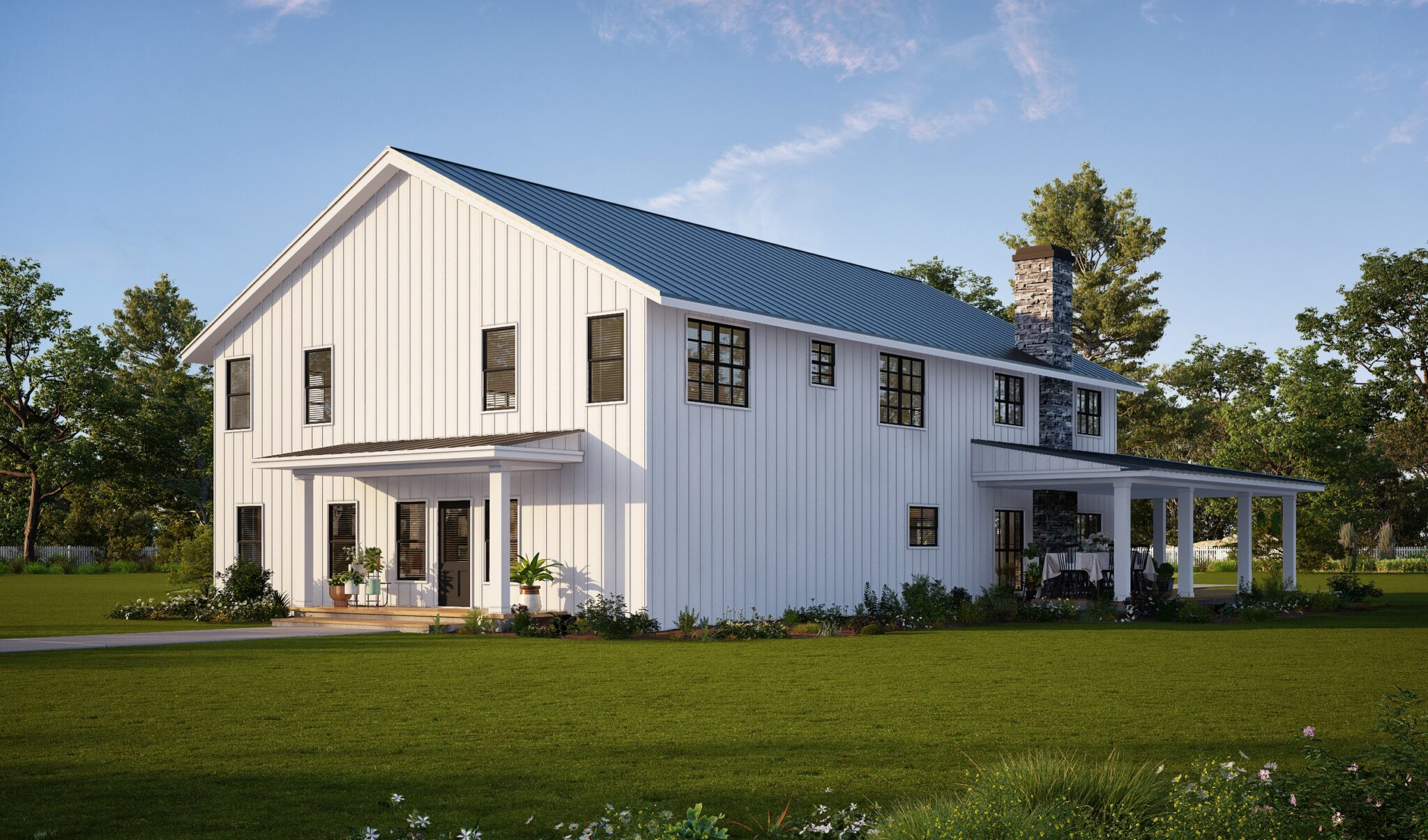

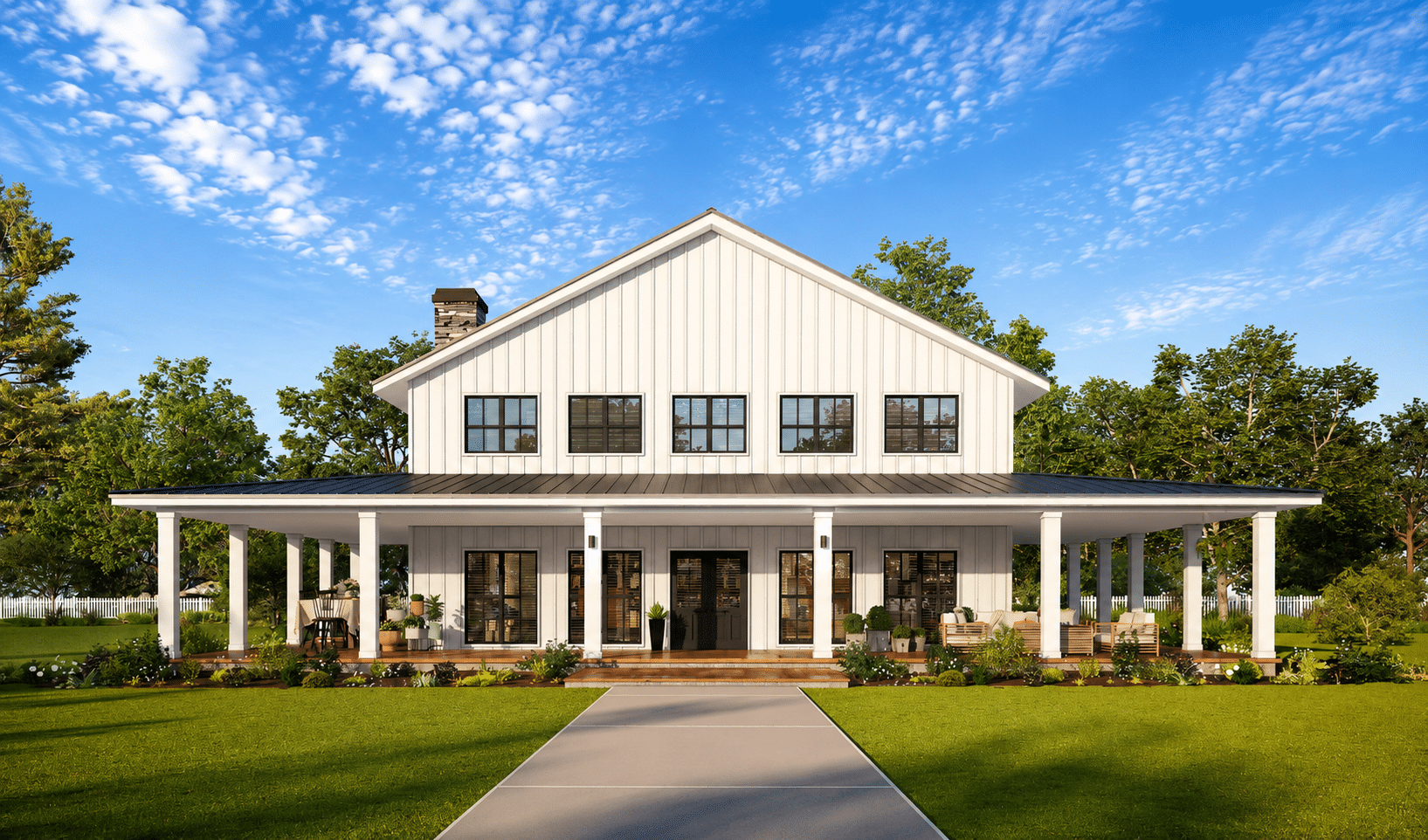

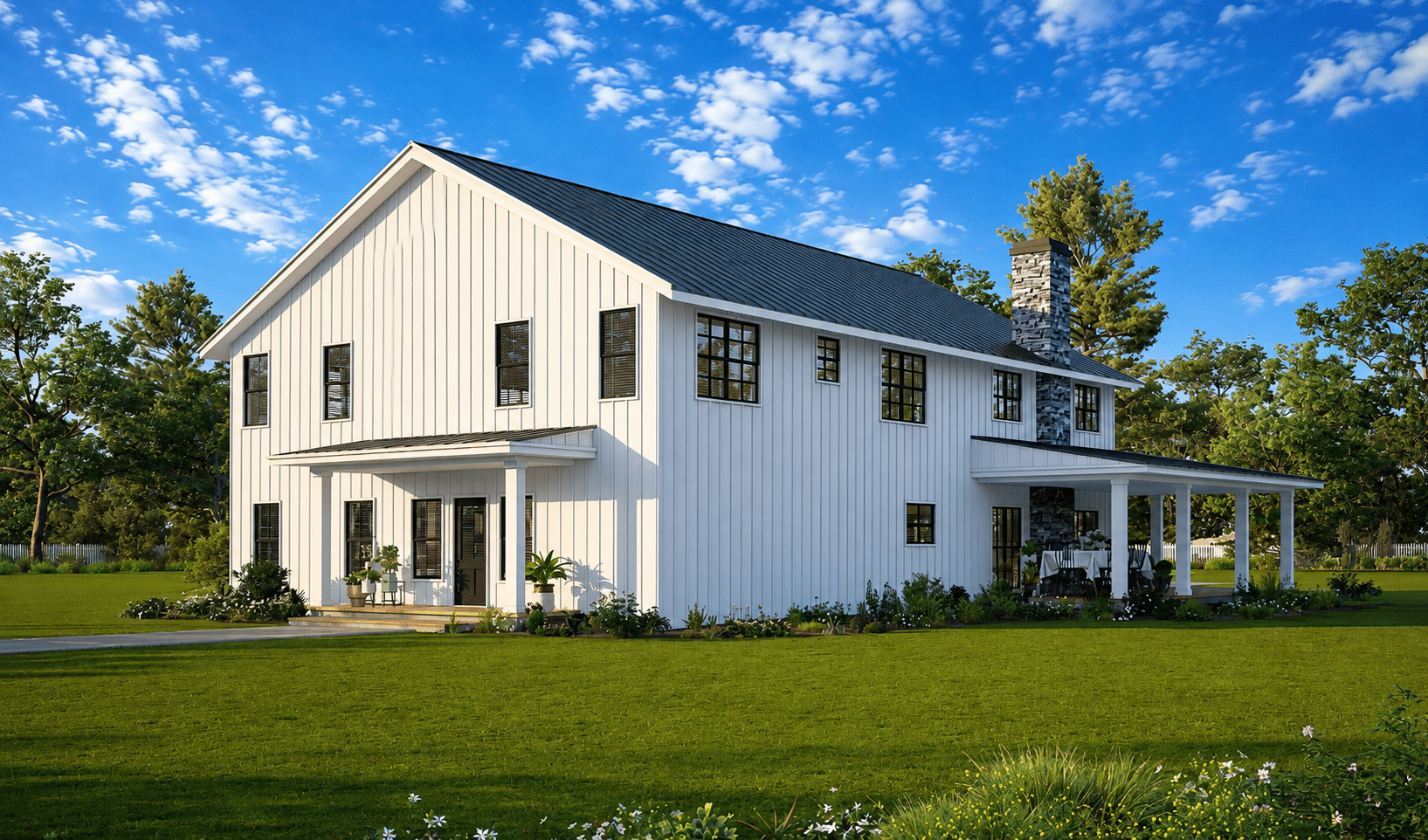

-Front and Rear Elevation

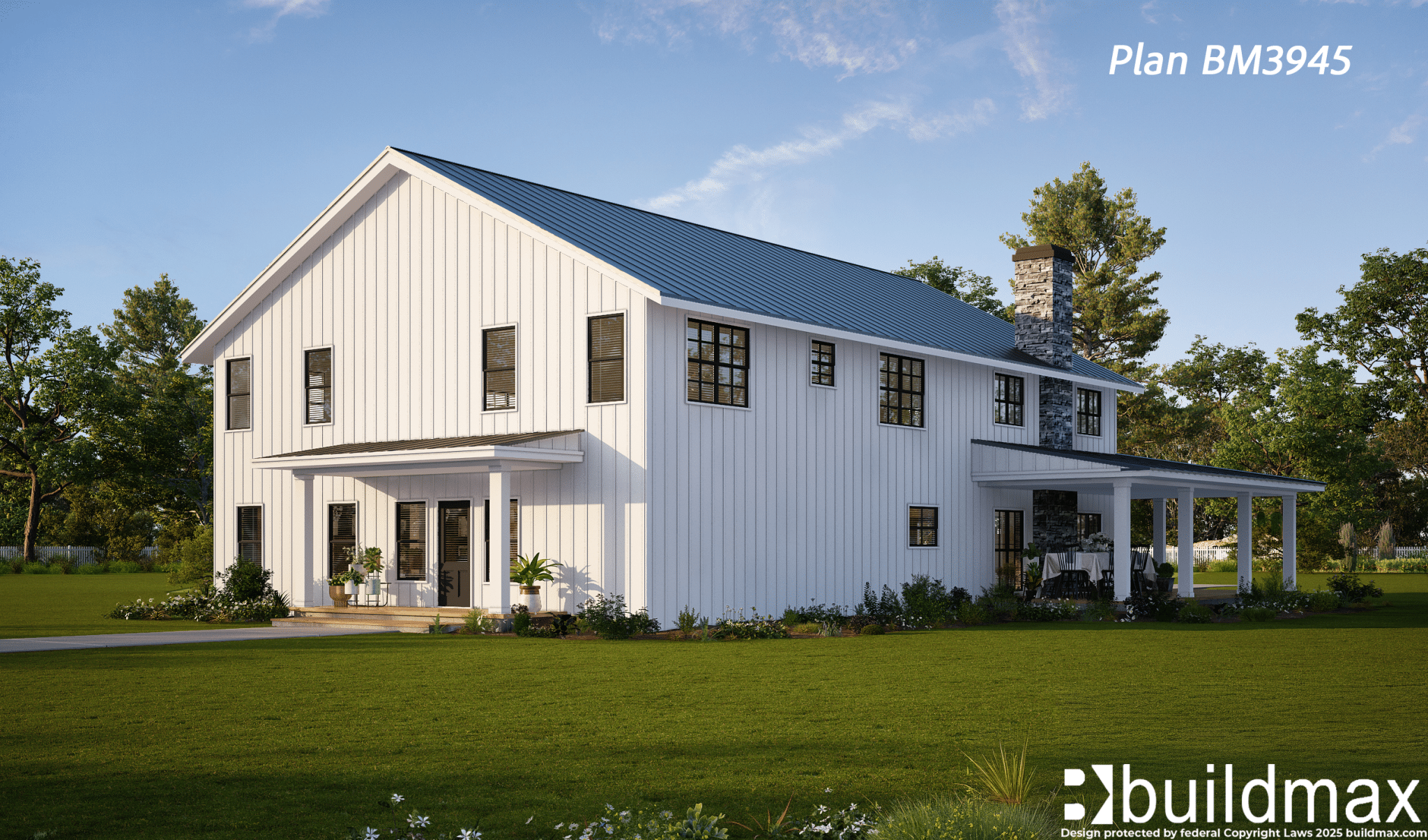

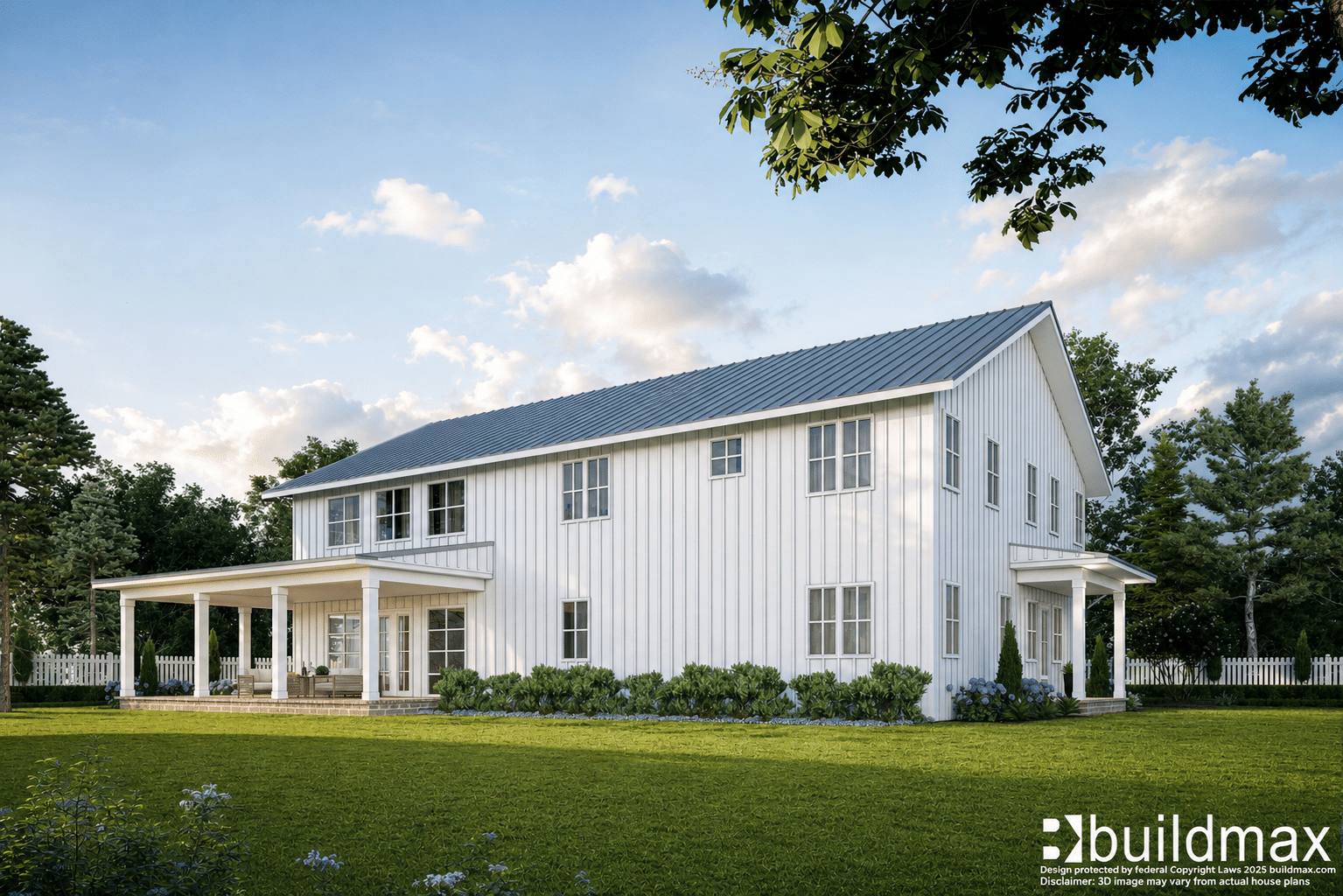

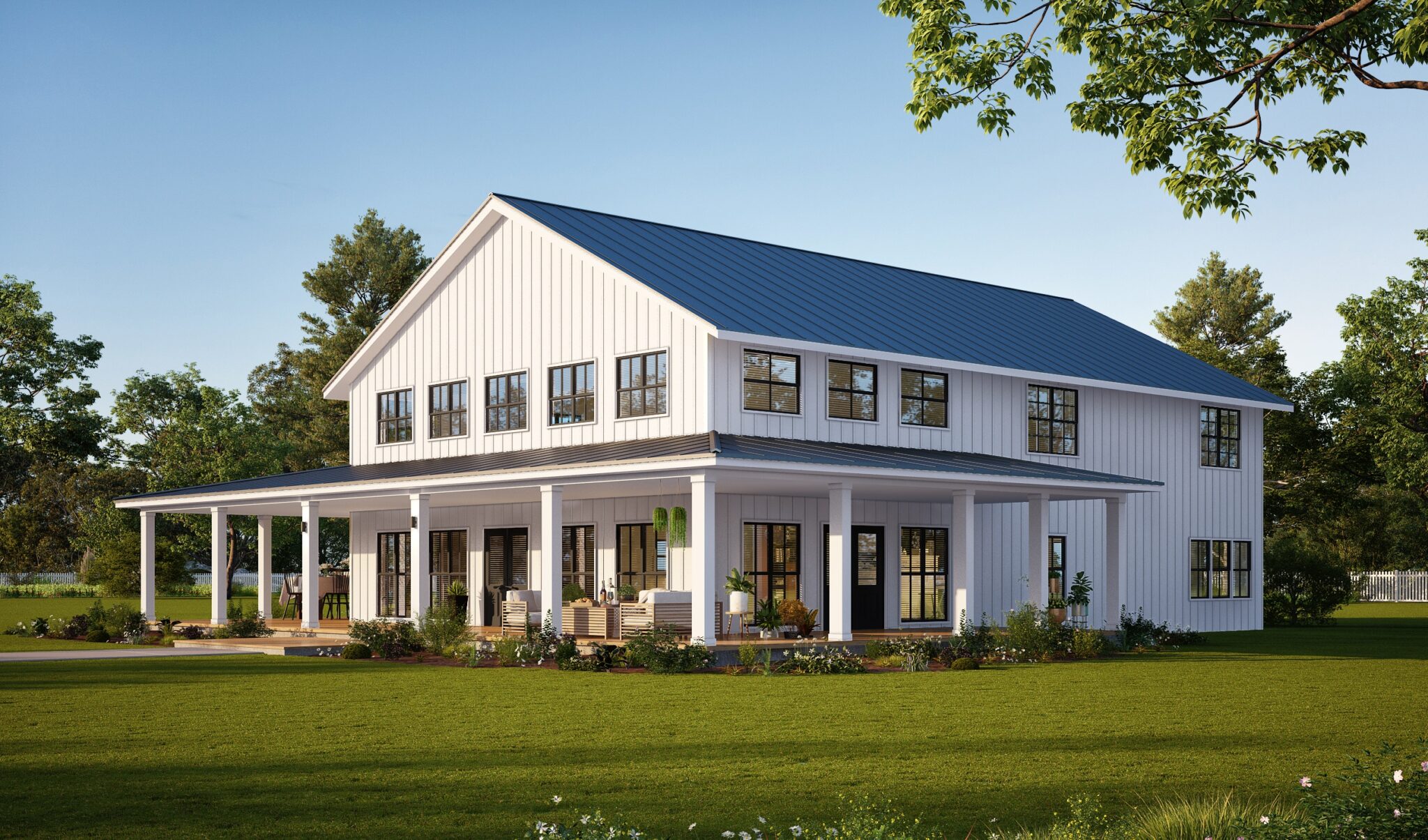

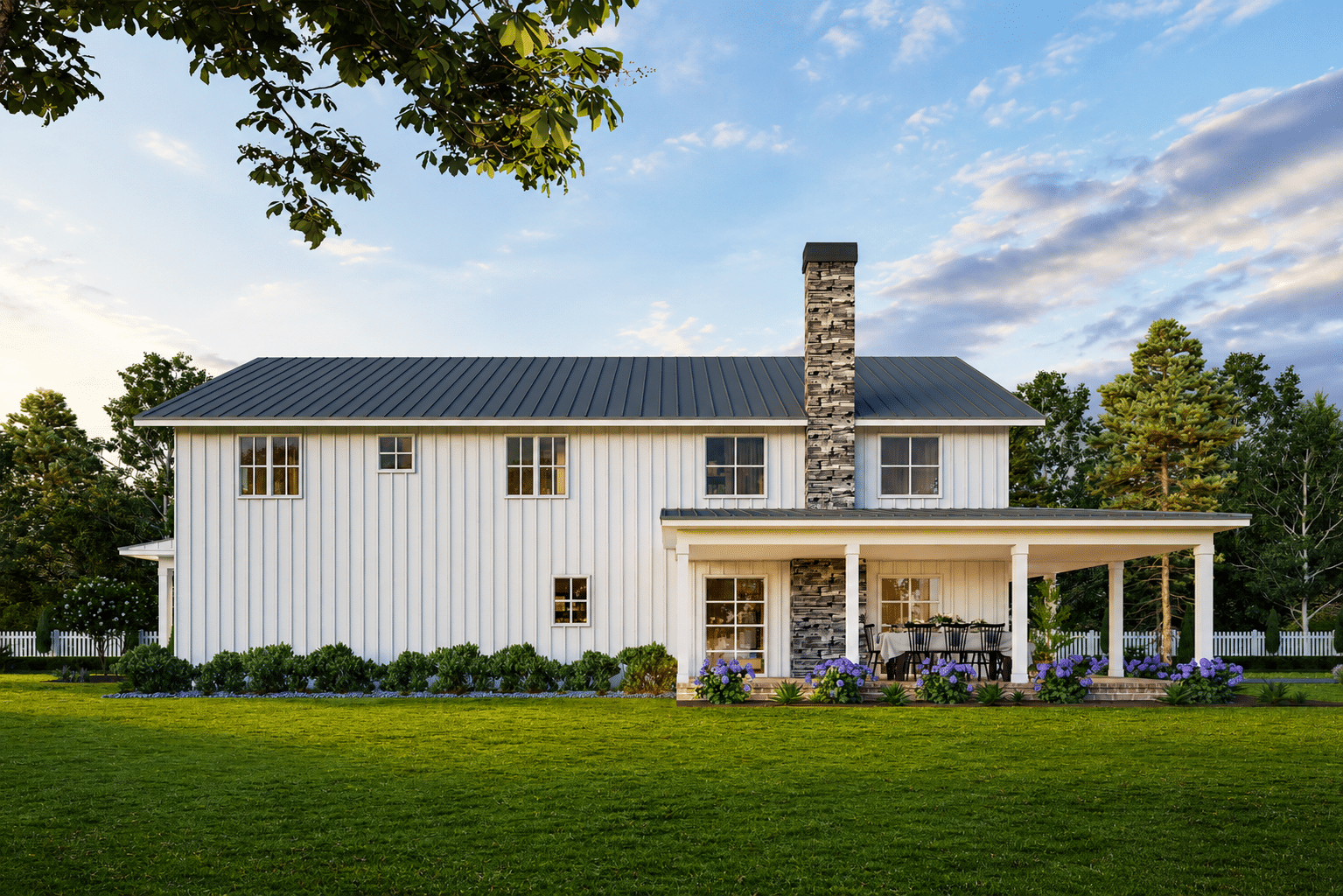

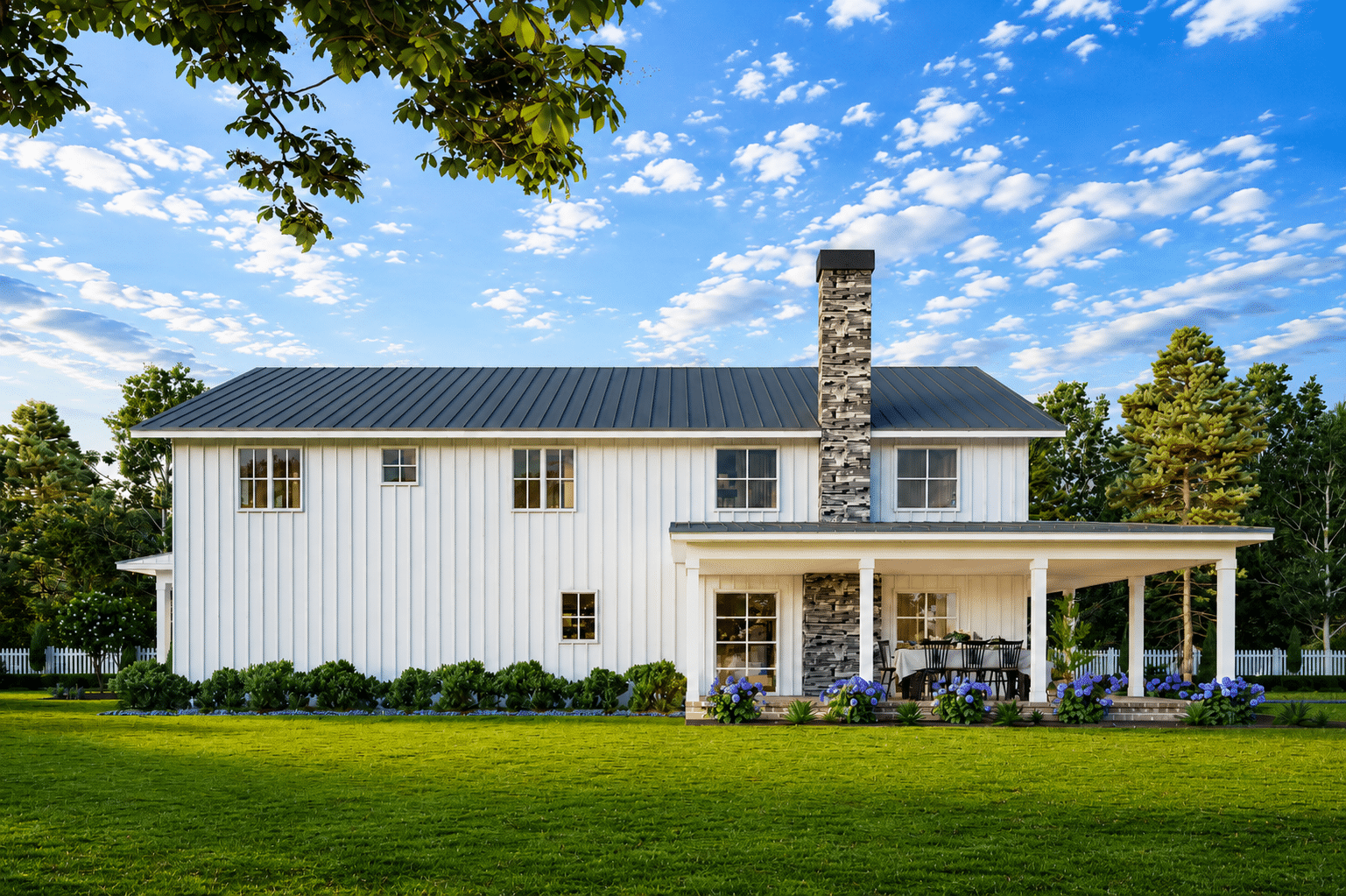

-Right and Left Elevation
-First & Second Floor Electrical Plan
-First & Second Floor Plumbing Plan
-First & Second Floor HVAC Plan
-Foundation Plan
-Roof Framing Plan
-Second Floor I-Joist Plan
-Doors & Windows Schedule

All house plans on buildmax.com were designed to accommodate the local codes and requirements at the time & location the original house was designed, these may not fall directly in line with your local regulations, and it is your responsibility to follow up with your local building department to ensure compliance is accomplished. All stock, custom or modified plan purchases are final, and we cannot refund or exchange any plan after date of purchase.

In addition to the house plans you order; many jurisdictions require a site plan be drawn up that indicates where on the property the structure will be placed. For an additional fee, BuildMax may be able to assist in the design of the site plan if you provide us with the plot plan or deed descriptions. Some areas of the country require specific beam size for roof loads depending upon snowfall in the region. If your lot is not tied to a sanitary sewer system you may also need a septic design to be drawn by a licensed professional. Many areas now have area-specific energy codes that also must be followed to certain specifications. There are several free energy code calculators online that your local building department may accept. Your builder may also be able to help with this.

In some regions, there are additional steps you will need to take to insure your house plans follow local codes. Some areas of North America have extremely strict structural engineering requirements. Examples of this would be things like areas of California and the Pacific Coast that are on active fault lines and more prone to natural disasters, areas at risk for tropical storms and hurricanes such as the East coast, the Gulf coast & the Carolinas. Tornado Alley in the Midwest will most certainly have interesting structural engineering requirements set in place. Also New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, count on having to hire a state licensed structural engineer to look over and approve the designs and potentially provide additional drawings and recalculations required by your building department. Pretty much every region of the United States has some type of specific requirement due to natural elements, you may need to leave room in your budget for the purchase CAD drawings so an engineer or architect can make the appropriate changes needed. Building departments typically have a print-out they will provide you listing all the items they require to obtain a building permit.

Something else to be aware of with stock plans, they do not have a professional stamp attached. If your building department requires one, this means they will only accept a stamp from a professional that is licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for a full review and a stamp showing the plans have been approved by a state licensed architect or engineer. In addition to this, plans which are used to construct homes in the state of Nevada are required to be drawn by a licensed Nevada architect. If you are not fully aware of all the Local regulations just go down and check with your local building department, they will be able to provide you with every code requirement and specification you need for your plans to be 100% compliant with the local regulations in your area.
