A LARGE FAMILY BARNDOMINIUM HOUSE PLAN

A spacious family barndominium with a private master suite, four bedrooms and two Jack-N-Jill bathrooms. This simple yet functional barndo is perfect for a larger or growing family looking for plenty of space. The flexibility of this barndominium is that it can be built using stick-built, steel or pole barn methods. A 5 car garage makes this a perfect option for a shop house.

ALSO SEE OUR 3 BEDROOM METAL BARNDO

Pricing: Stock PDF Plan $1,645.00

Modify this plan for $750 more

Redesign: call for pricing

Customize barndo #3755 in 21 days!

Our new Accelerated Custom Design program can get a first draft in your hands in as little as 21 days.

KEY SPECS

3755

sq ft

5

Bed

3.5

Baths

1

Floor

5 Car

Garage

PLAN DESCRIPTION

FAQ

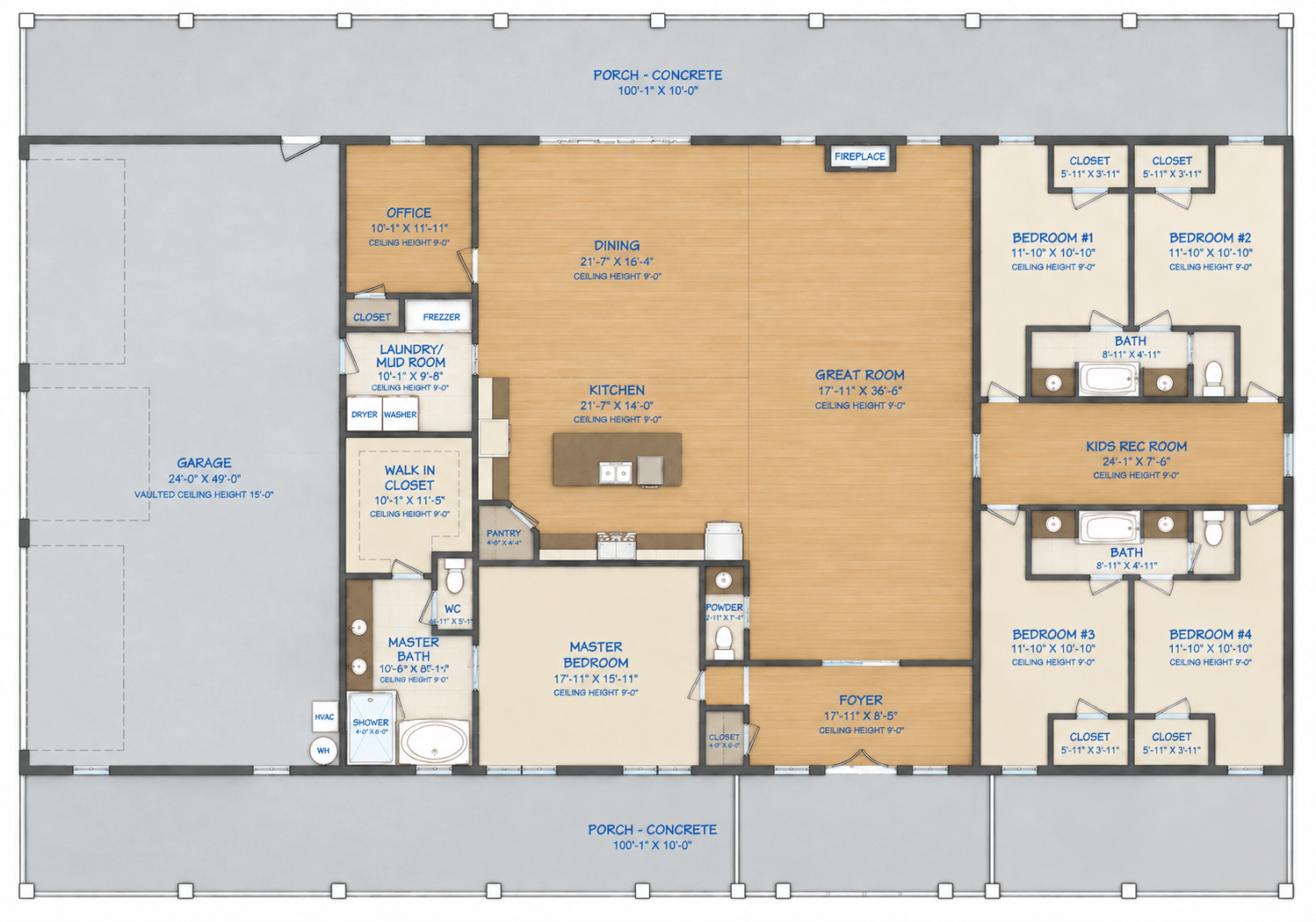

Total Heated Square Footage: 3755

Overall Measurements: 50’X100′ย
Garage” 50’X25′
LIVING SPACE: 50’X75′

Foundation Type: slab

Bedrooms: 5

Bathrooms: 3 1/2

Master Suite Square Footage: 288 SF

Master Bathroom Including Large Shower and Double Vanity

Bedrooms: 5

Walk-In Closets

FRAMING SPECIFICATIONS
Exterior framing: 2×6 woodย
Roof framing: Truss
Siding: Metal
Roofing: Metal

All plans are designed as conventional wood or conventional steel stud framing (2×6 exterior, 2×4 interior) using a monolithic slab foundation. Post frame foundation and post framing details will require a modification fee. Our plans are not designed in red iron steel. If you plan to use a red iron steel company, you can purchase our licensed plan and the red iron company will use our plan with their software to produce the red iron shell package. CAD files are available for an extra fee if a steel manufacturer, post frame company or local engineer requires them.

-Digital download (PDF can be printed 24โ€ณX36โ€ณ full size)
-First Floor Plan
-Second Floor Plan
-Roof Plan
-Front and Rear Elevation
-Right and Left Elevation
-First & Second Floor Electrical Plan
-First & Second Floor Plumbing Plan
-Foundation Plan
-Roof Framing Plan
-Second Floor I-Joist Plan
-Doors & Windows Schedule

All house plans on buildmax.com were designed to accommodate the local codes and requirements at the time & location the original house was designed, these may not fall directly in line with your local regulations, and it is your responsibility to follow up with your local building department to ensure compliance is accomplished. Photo and video renditions may differ from the actual plans based on many factors, including truss layout, exterior and interior finishes. All stock, custom or modified plan purchases are final, and we cannot refund or exchange any plan after date of purchase.

In addition to the house plans you order; many jurisdictions require a site plan be drawn up that indicates where on the property the structure will be placed. Some areas of the country require specific beam size for roof loads depending upon snowfall in the region. If your lot is not tied to a sanitary sewer system you may also need a septic design to be drawn by a licensed professional. Many areas now have area-specific energy codes that also must be followed to certain specifications. There are several free energy code calculators online that your local building department may accept. Your builder may also be able to help with this.

In some regions, there are additional steps you will need to take to insure your house plans follow local codes. Some areas of North America have extremely strict structural engineering requirements. Examples of this would be things like areas of California and the Pacific Coast that are on active fault lines and more prone to natural disasters, areas at risk for tropical storms and hurricanes such as the East coast, the Gulf coast & the Carolinas. Tornado Alley in the Midwest will most certainly have interesting structural engineering requirements set in place. Also New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well. If you are building in these areas, count on having to hire a state licensed structural engineer to look over and approve the designs and potentially provide additional drawings and recalculations required by your building department. Pretty much every region of the United States has some type of specific requirement due to natural elements, you may need to leave room in your budget for the purchase CAD drawings so an engineer or architect can make the appropriate changes needed. Building departments typically have a print-out they will provide you listing all the items they require to obtain a building permit.

Something else to be aware of with stock plans, they do not have a professional stamp attached. If your building department requires one, this means they will only accept a stamp from a professional that is licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for a full review and a stamp showing the plans have been approved by a state licensed architect or engineer. In addition to this, plans which are used to construct homes in the state of Nevada are required to be drawn by a licensed Nevada architect. If you are not fully aware of all the Local regulations just go down and check with your local building department, they will be able to provide you with every code requirement and specification you need for your plans to be 100% compliant with the local regulations in your area.

Building a metal building barndominium can be easier than you think. Our barndominium design team works with you and your family to design the perfect barndo. Our consultations are free and we have years of experience designing house plans. Many of our clients come to us with their plan sketched out on a piece of paper. Whether you know what you want in a house plan or you need help designing a metal building plan we have the expertise to help. Our friendly designers love barndominium plans and we are great listeners, exactly what you want in a floor plan designer.
